Ektor Razor Professional Swing Surface Mounted Emergency Exit 24M
SKU: EV-RAZOR-SWING-24M-PRO
We will send you an email to reset your password.
We will send you an email to reset your password.

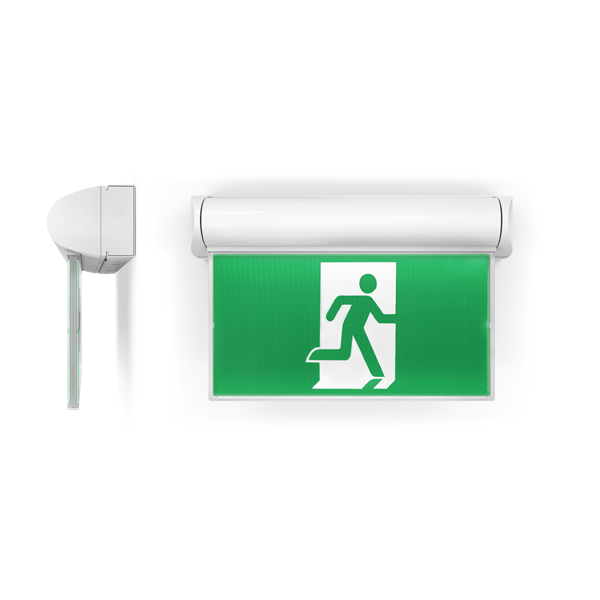

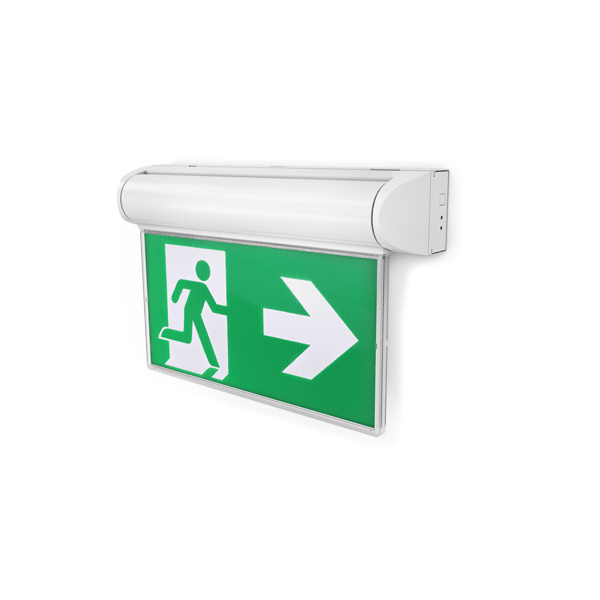

Razor Professional Adjustable Slimblade Surface Mounted Emergency Exit, 24m
Adjustability | Adjustable |
---|---|
Body Material | Polycarbonate |
Diffuser Material | PMMA |

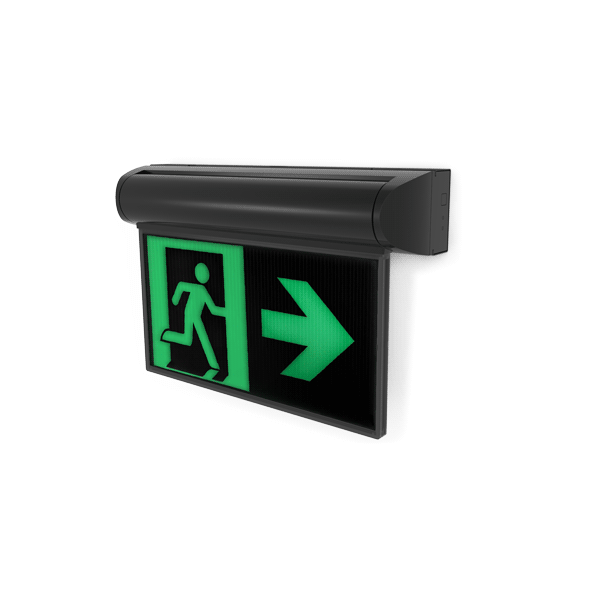

Fitting Colour | White (14545) or Black (14546) |
Installation Type | Surface mount |
IP Rating | IP20 |
Electrical Rating | Class I |
---|---|
Input Frequency | 50 Hz |
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Maximum Wattage | 3.7 W |
Standby Power | 1.7 W |
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Working Temp Range | 0 to 40 °C |
CCT Configuration | Single |
---|---|
CRI | >80 |
Lamp/LED Current | 75 mA |
Lamp/LED voltage | 9 V |
LED Lifetime Rating | >31Y/06M |
---|---|
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign. |
CCT | 6000K |
---|---|
LED Wattage | 0.75 W |
Dimmable | No |
---|---|
Driver Included | Yes |
Integrated Driver | Yes |
Driver Type | DALI DT1 Emergency |
Wiring Type | Re-wireable terminal block (5 pin) |
Replacement Battery Code | 01300 |
---|---|
Emergency Classification | C0:E6.3, C90:E16 |
Emergency Control | DALI Monitored (DT1) |
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. | |
Decal Size | 300 x 150 mm |
Emergency Duration | 90 mins |
Emergency Mode | Maintained |
Emergency Output Power | 750 mW |
Viewing Distance | 24 m |
Product Design Life | 10 years |
---|---|
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
Standards |
|
Commercial Use Warranty | 5 RTB (Total 5 Years) |
---|
