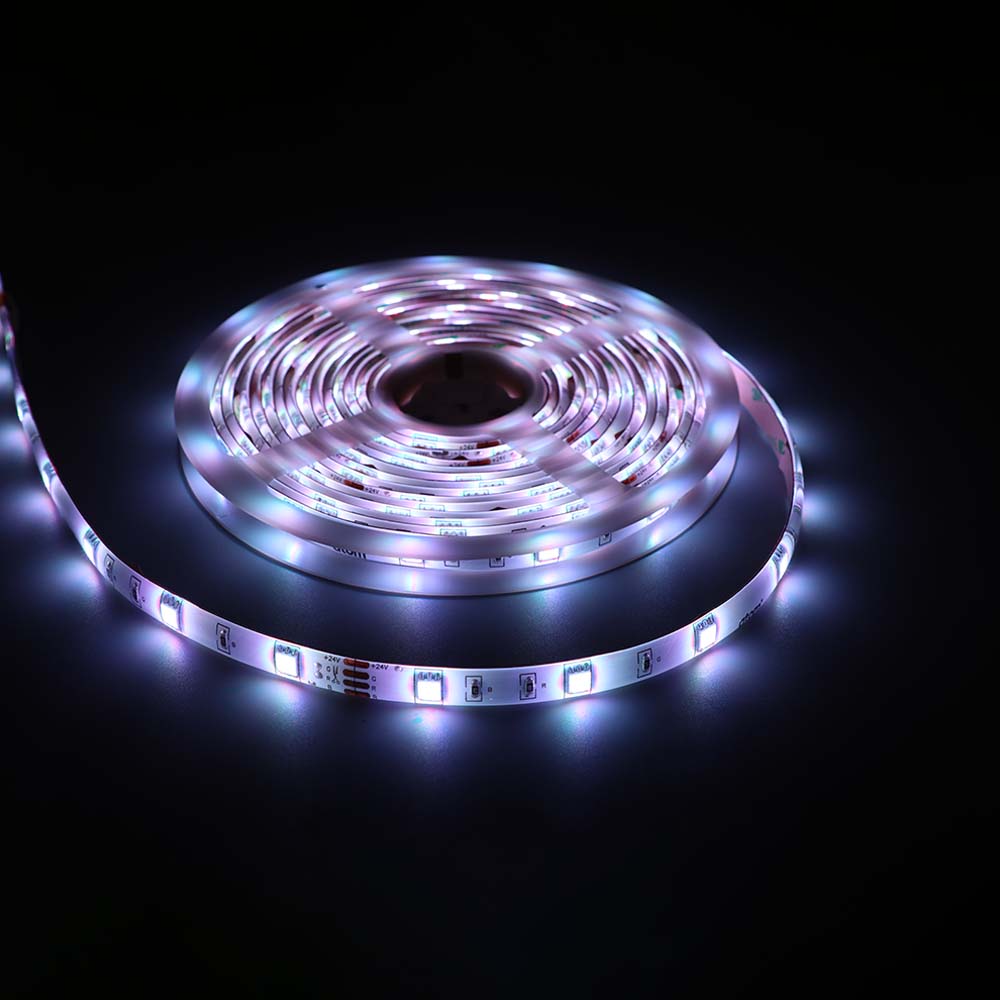

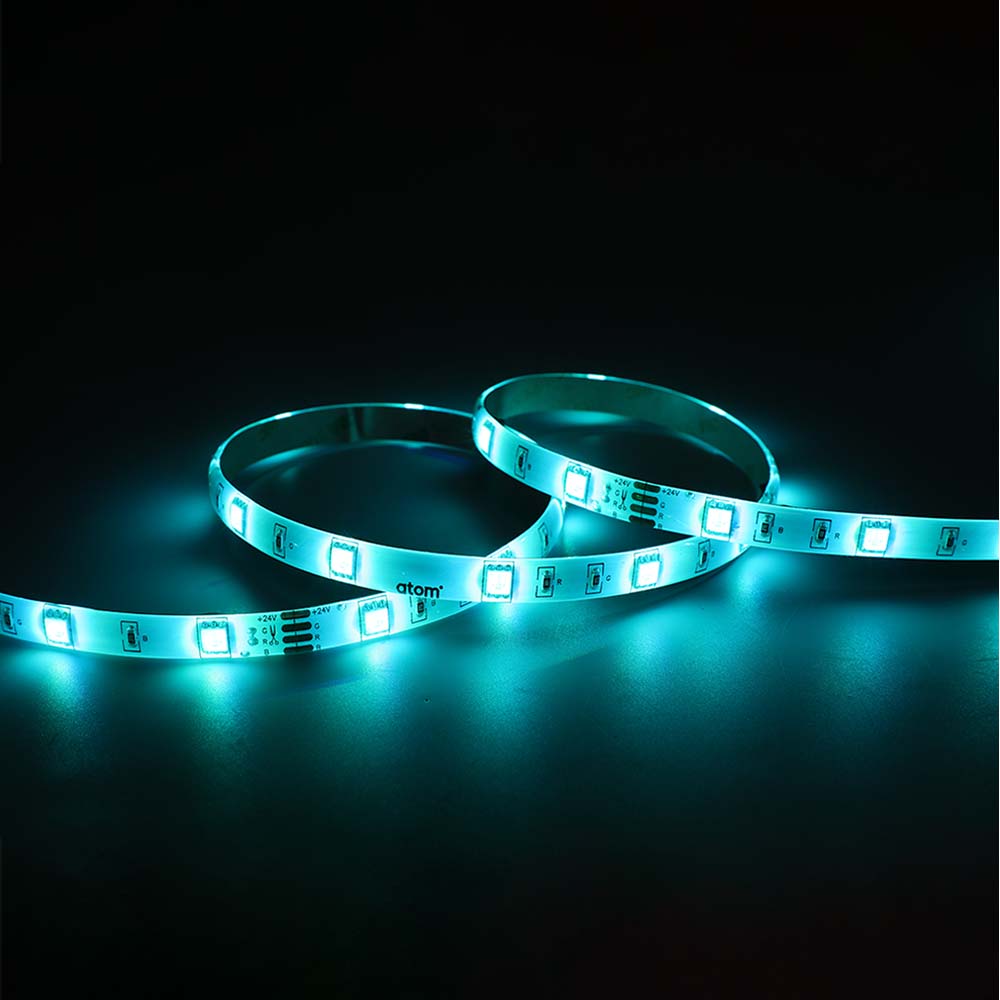

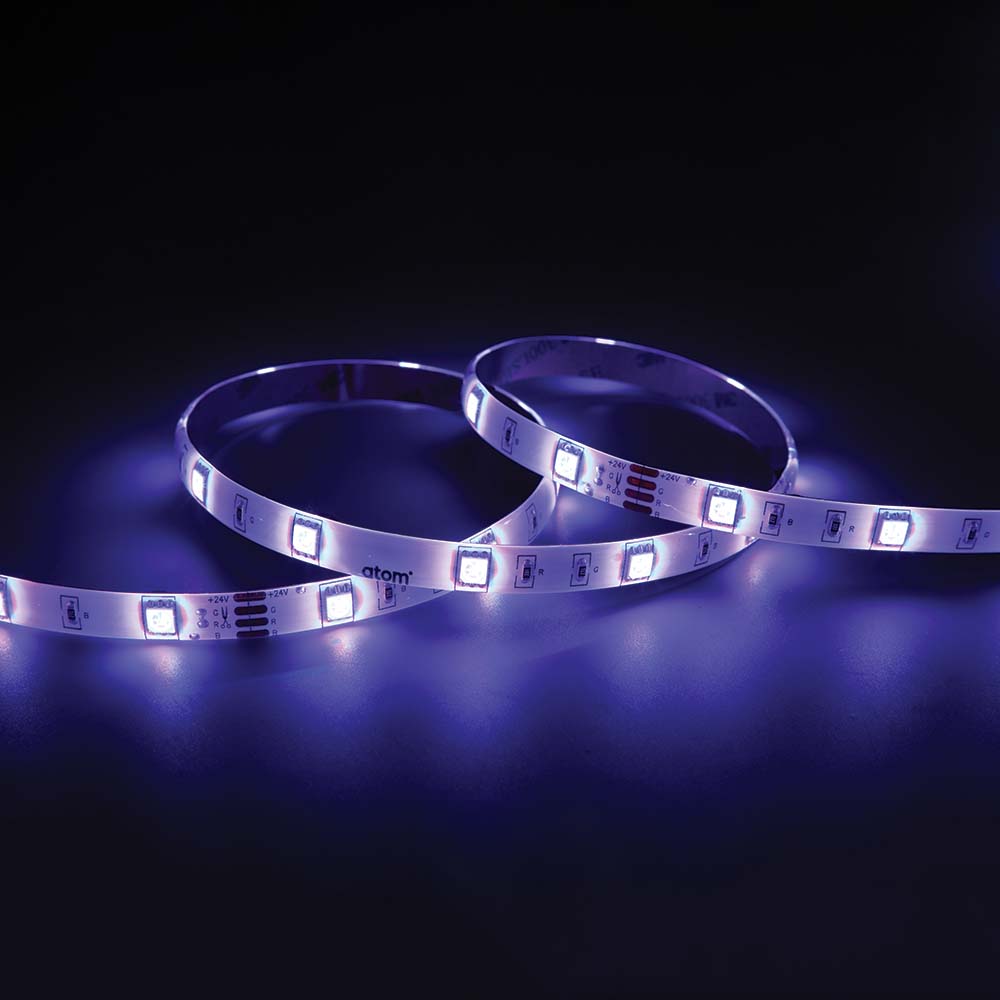

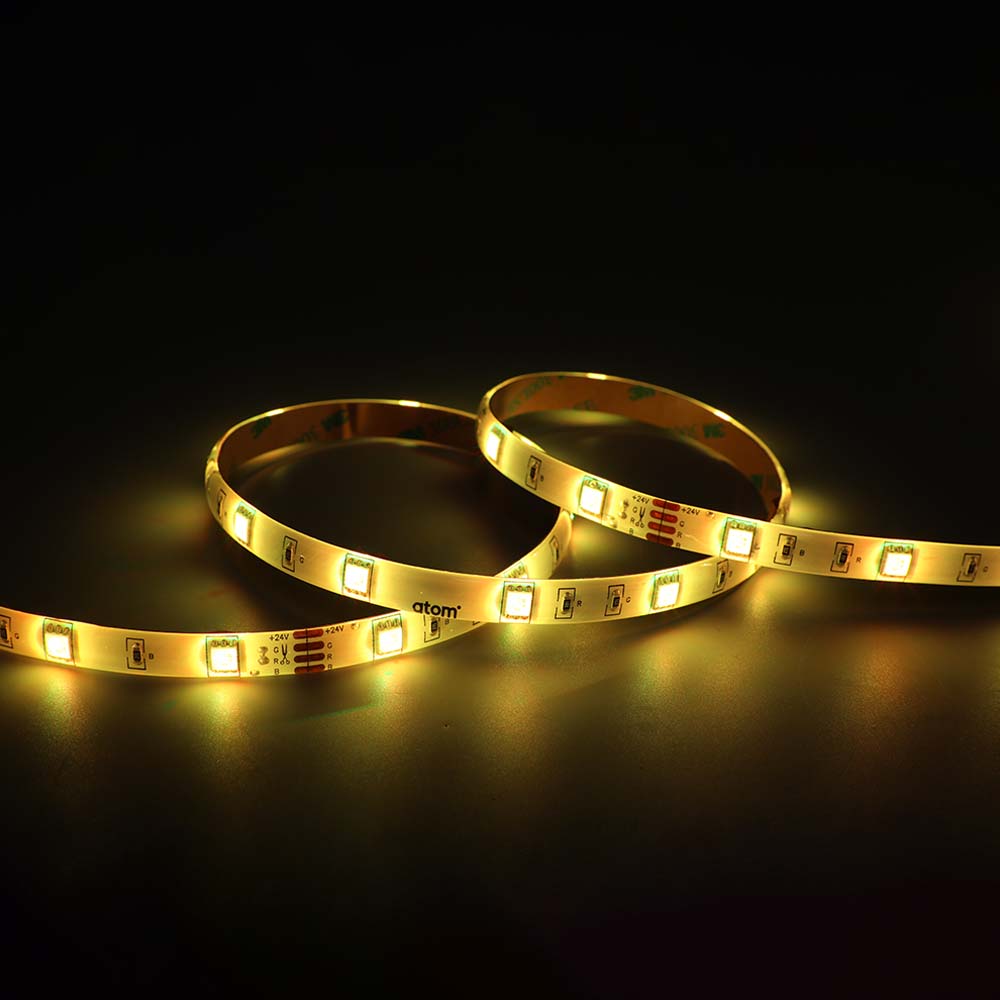

Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB

by Atom Lighting
SKU: AT9208/RGB/KIT/5M
$180.00 $105.00 42% off
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB
Sale

Atom Lighting AT9208 RGB LED STRIP KIT IP54 4.8W/m RGB

by Atom Lighting
SKU: AT9208/RGB/KIT/5M
$180.00 $105.00 42% off
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Superior 24V design
  • Weather resistant IP54
  • Flexible, quality LED housing

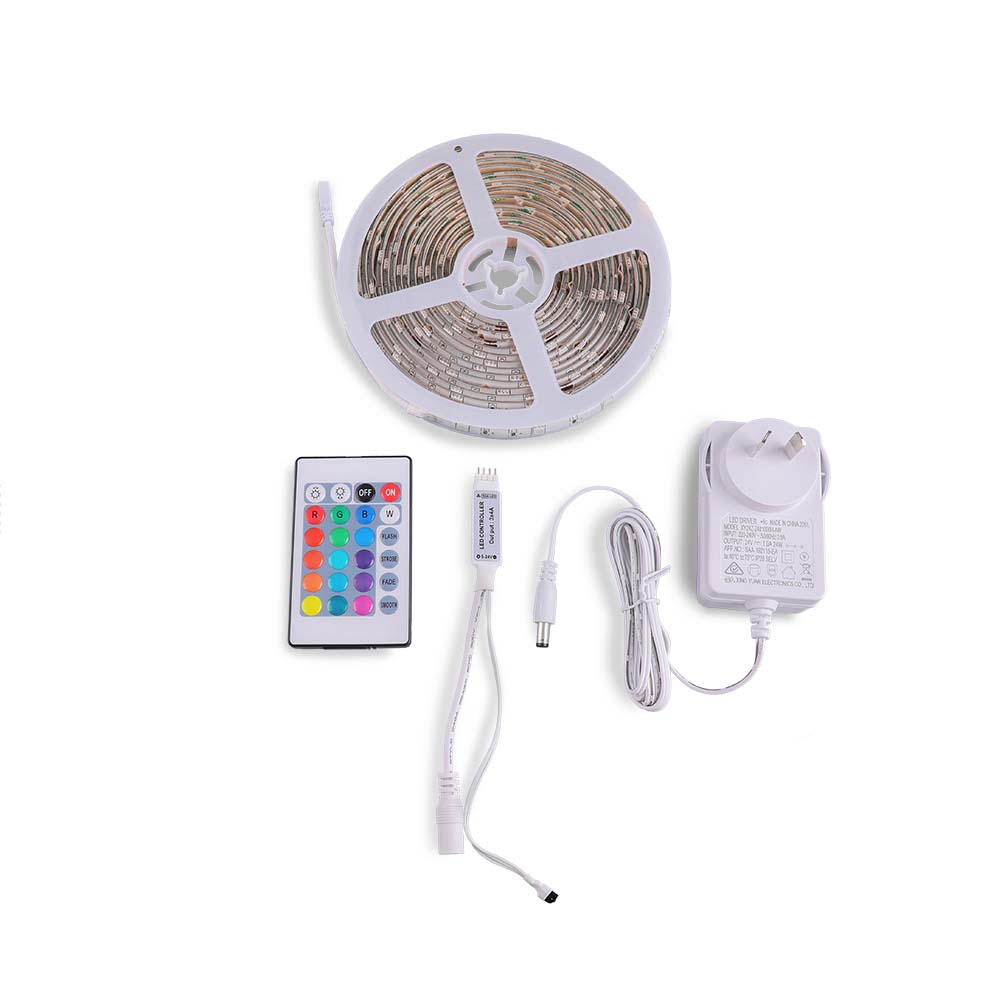

  • Includes 24V power supply
  • D.I.Y. easy install
  • Supplied with 3M adhesive tape

Specifications

Mechanical

IP Rating IP54

Electrical

Electrical Rating Class II
Input Current 0.5 A
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 24 W
Watts Per Meter (W/m) 4.8
Working Temp Range 40 °C

Lamp

CCT Configuration RGB
Lamp/LED voltage 24 V
LED's per meter 60
Lumens /m 148 lm/m

Colour temperature

LED Wattage 24 W
Luminaire Lumens 740 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

Driver Included Yes
Driver Mode Constant Current
Driver Type Fixed output
Flex & Plug or Lead Length 1500 mm
Wiring Type Re-wireable Flex & Plug (2 pin)

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • IEC 60598.2.21
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS 3112
  • EN 55015
  • IEC 60086.4
  • IEC 62031
  • IEC 62471
  • IEC 62493

Warranty

Domestic Use Warranty 3 RTB (Total 3 Years)
VIP Warranty 2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours 13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
