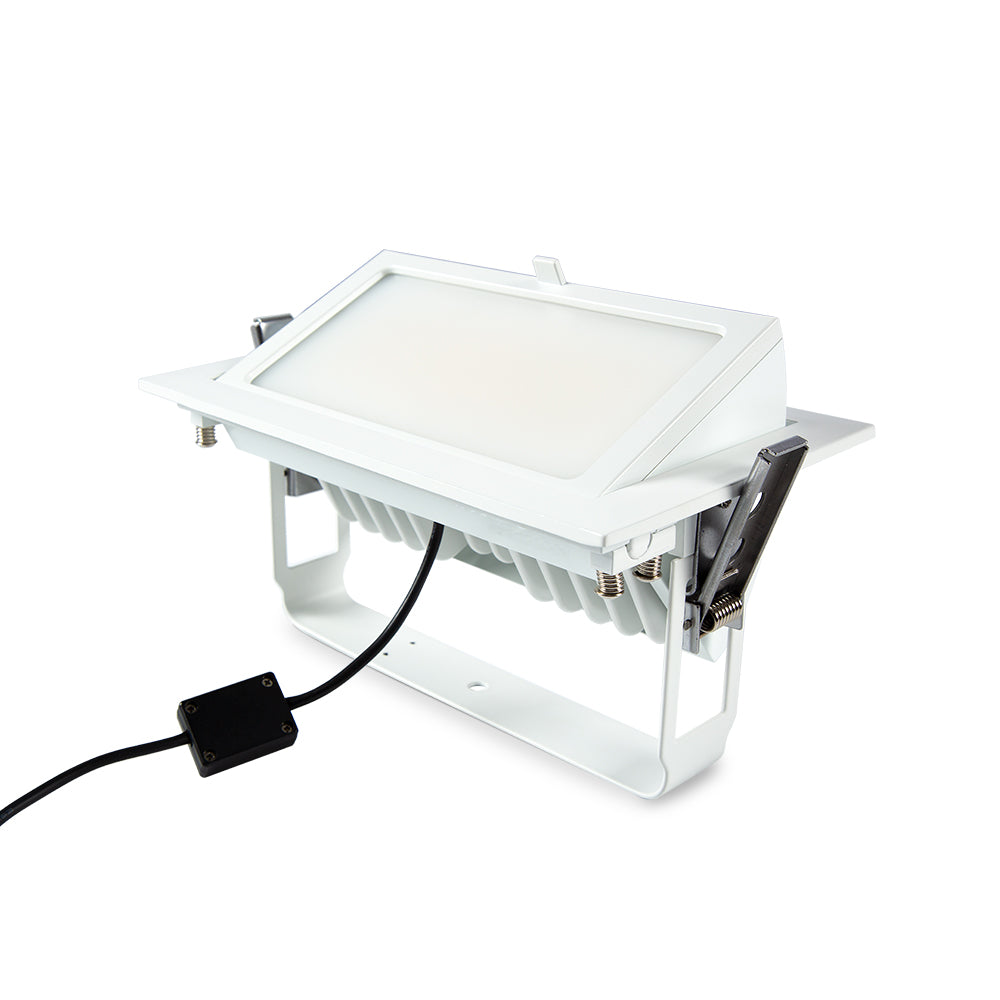

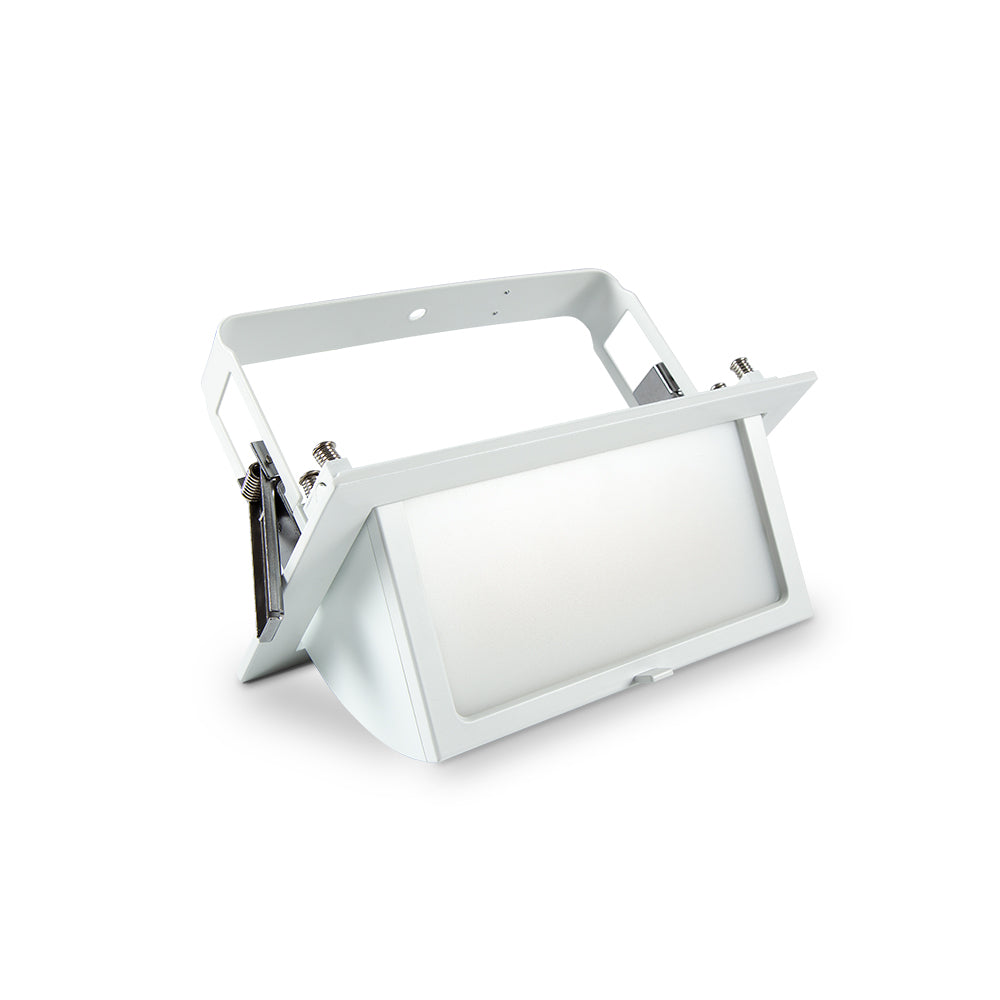

Atom AT9043 32W LED Rectangular Shop Light with LED Driver

by Atom Lighting
SKU: AT9043/WH/TRI
$125.00
Atom AT9043 32W LED Rectangular Shop Light with LED Driver
Atom AT9043 32W LED Rectangular Shop Light with LED Driver
Atom AT9043 32W LED Rectangular Shop Light with LED Driver

Atom AT9043 32W LED Rectangular Shop Light with LED Driver

by Atom Lighting
SKU: AT9043/WH/TRI
$125.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Atom AT9043 32W LED Rectangular Shop Light with LED Driver
Atom AT9043 32W LED Rectangular Shop Light with LED Driver
$125.00
Tax included.Shipping calculated at checkout.

Description

32W Rectangular LED Shop Light – Tri-CCT

  • Energy efficient LED
  • Ideal for retail and commercial lighting applications
  • Tilt-head for wall washing
  • Phase-cut dimmable
  • Tri-CCT selectable

Mechanical

Adjustability Adjustable
Body Material Aluminium
Diffuser Material Frosted Polycarbonate
Product Finish Powder coated
Fitting Colour White
IC Rating Do not cover
Installation Type Recessed
IP Rating IP20

Electrical

Electrical Rating Class II
Input Current 0.15 A
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 32 W
Power Factor 0.9
Switch Type Inline
Working Temp Range 0 to 40 °C


Lamp

Macadam Steps (SDCM) 5-step MacAdam Ellipse
Beam Angle 110 °
CCT Configuration TRI-CCT
Colour Rendering Index (CRI) >80
Lamp/LED Current 800 mA
Lamp/LED voltage 36 V

Colour temperature

Warm White (3000 K) 3300 lm
Cool White (4000 K) 3700 lm
DayLight (5700 K) 3300 lm

Driver

Dimmable Yes
Driver Included Yes
Integrated Driver No
Driver Mode Constant Current
Driver Type Dimmable ( Phase cut)
Flex & Plug or Lead Length 600 mm
Wiring Type Re-wireable Flex & Plug (2 pin)

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347/2/13
  • AS CISPR 15

Warranty

Domestic Use Warranty 3 (Yr) RTB
