Atom AT9064 10W Dimmable LED surface mount downlight
Atom AT9064 10W Dimmable LED surface mount downlight
White, 3000K
$80.00
Tax included.Shipping calculated at checkout.

Description

Features

  • Integrated COB LED
  • Ideal for commercial, retail, showroom and decorative

Mechanical

Adjustability Fixed
Body Material Aluminium
Diffuser Material Glass
Product Finish Powdercoated
Fitting Colour

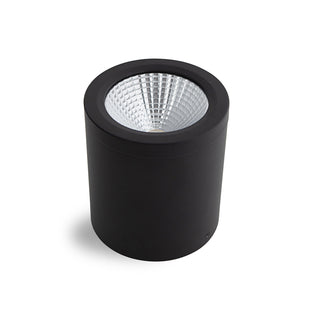

AT9064/BLK/60/WW Black
AT9064/SIL/60/CW Silver
AT9064/WH/60/CW White
Installation Type Surface mount
IP Rating IP54 Front Face Only

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 10 W
Switch Type Inline
Working Temp Range -20 to 45 °C

Lamp

Beam Angle 60 °
CCT Configuration Single
CRI >80
LED Type COB

LED Lifetime

LED Lifetime 40000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9064/BLK/60/WW 3000 K
AT9064/SIL/60/CW
AT9064/WH/60/CW		 4000 K
CCT Colour
AT9064/SIL/60/CW
AT9064/WH/60/CW		 Cool White
AT9064/BLK/60/WW Warm White
LED Wattage 8 W
System Lumens
AT9064/BLK/60/WW 760 lm
AT9064/SIL/60/CW 780 lm
AT9064/WH/60/CW 790 lm
All photometric data has a tolerance of ±10%.

Driver

Dimmable Yes
Driver Included Yes
Integrated Driver Yes
Driver Mode Constant Current
Driver Type Dimmable ( Phase cut)
Wiring Type Re-wireable terminal block (3 pin)

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Commercial Use Warranty 3 RTB (Total 3 Years)
Domestic Use Warranty 3 (Yr) RTB



Product Diameter 90 mm
Product Height 100 mm
Product Weight 500 g
