Ektor Mercury Professional Emergency Exit 24m

by Ektor Lighting
SKU: EV-MERCURY
$255.00
Ektor Mercury Professional Emergency Exit 24m
Ektor Mercury Professional Emergency Exit 24m
Ektor Mercury Professional Emergency Exit 24m
Ektor Mercury Professional Emergency Exit 24m

Ektor Mercury Professional Emergency Exit 24m

by Ektor Lighting
SKU: EV-MERCURY
$255.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.

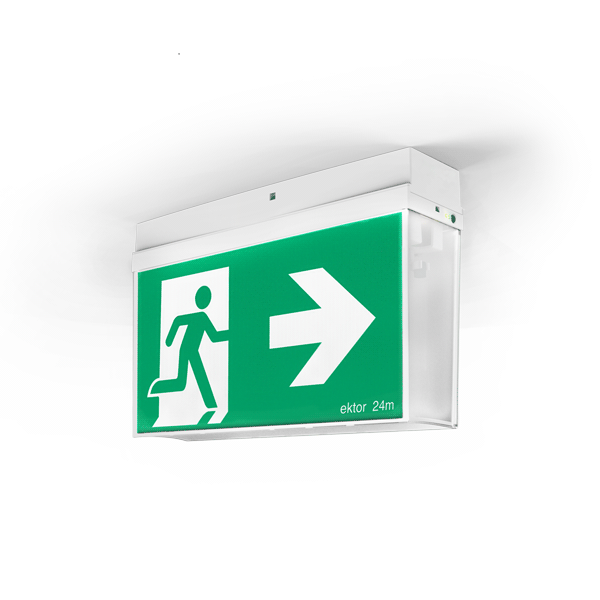

Mercury Professional Emergency Exit, 24m

Features

  • Single and double sided decals
  • Soft-start charger to reduce building load

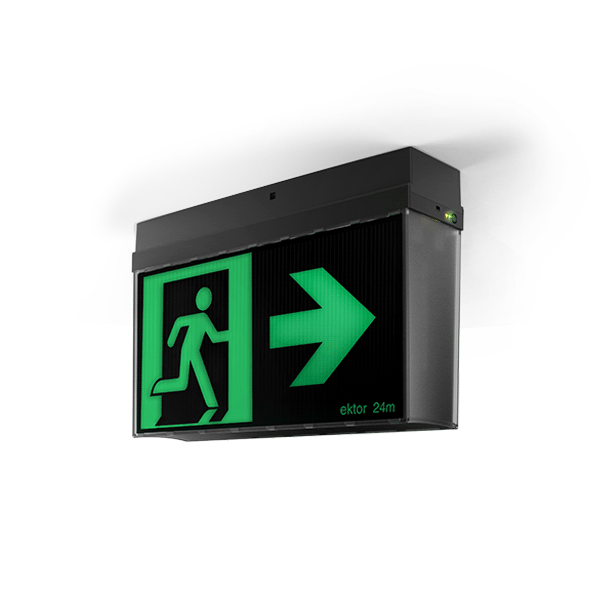

  • Available in low illumination area black model
  • IP65 Weatherproof Case available but not included
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
  • Long life electronics
  • 10 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034
  • IEC62386 over IEC62386-104
  • Ektor wired monitored system

MECHANICAL

Body Material Polycarbonate
Diffuser Material Polycarbonate
Fitting Colour White
Installation Type Wall or Ceiling
IP Rating IP20

ELECTRICAL

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 4.5 W
Standby Power 3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range 0 to 40 °C

LAMP

CCT Configuration Single
CRI >80

COLOUR TEMPERATURE

CCT 6000K
LED Wattage 1.5 W

DRIVER

Dimmable No
Driver Included Yes
Integrated Driver No
Driver Type DALI DT1 Emergency
Wiring Type Re-wireable terminal block (5 pin)

EMERGENCY (EM SUFFIX)

Replacement Battery Code 01300
Emergency Classification C0:C12.5, C90:C20
Emergency Control DALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size 300 x 150 mm
Emergency Duration 90 mins
Emergency Mode Maintained
Emergency Output Power 1500 mW
Viewing Distance 24 m

COMPLIANCE

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

WARRANTY

Commercial Use Warranty 5 RTB (Total 5 Years)

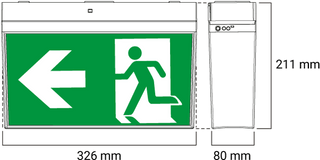

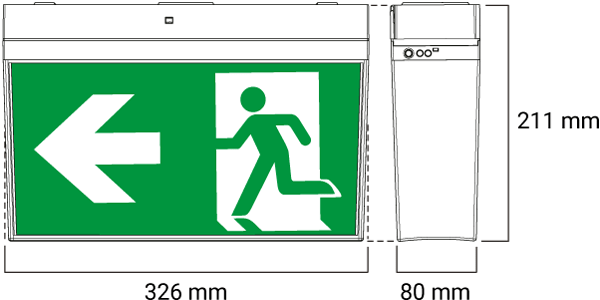

PRODUCT HEIGHT 326 mm
PRODUCT LENGTH 211 mm
PRODUCT WIDTH 80 mm
