SAL Blade SL9709 TC LED Low Profile Batten with Selectable CCT

Application

Conventional LED profile battens for commercial service spaces

Design Specifications

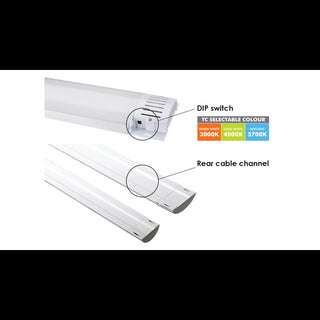

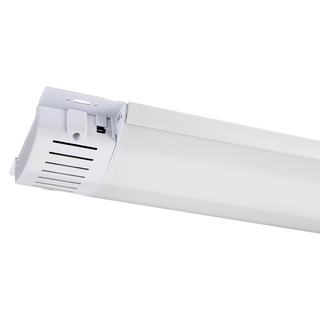

• Selectable CCT 3000K, 4000K, 5700K

• Extruded aluminium body with plastic end cap with a rear cable channel allowing easy wiring

• White powder coat finish

• Integral constant current non-dimmable LED driver, 25, 45 or 50 watt

• Robust opal polycarbonate diffuser

• High efficiency LED optics, CRI >80, 120 degree beam distribution

Performance

• Dimmable - NO

Size

25W 613(L) x 120(W) x 35(H) Lumens 3400/3600/3600

45W 1213(L) x 120(W) x 35(H) Lumens 6100/6500/6500

50W 1485(L) x 120(W) x 35(H) Lumens 6900/7300/7300
