Description

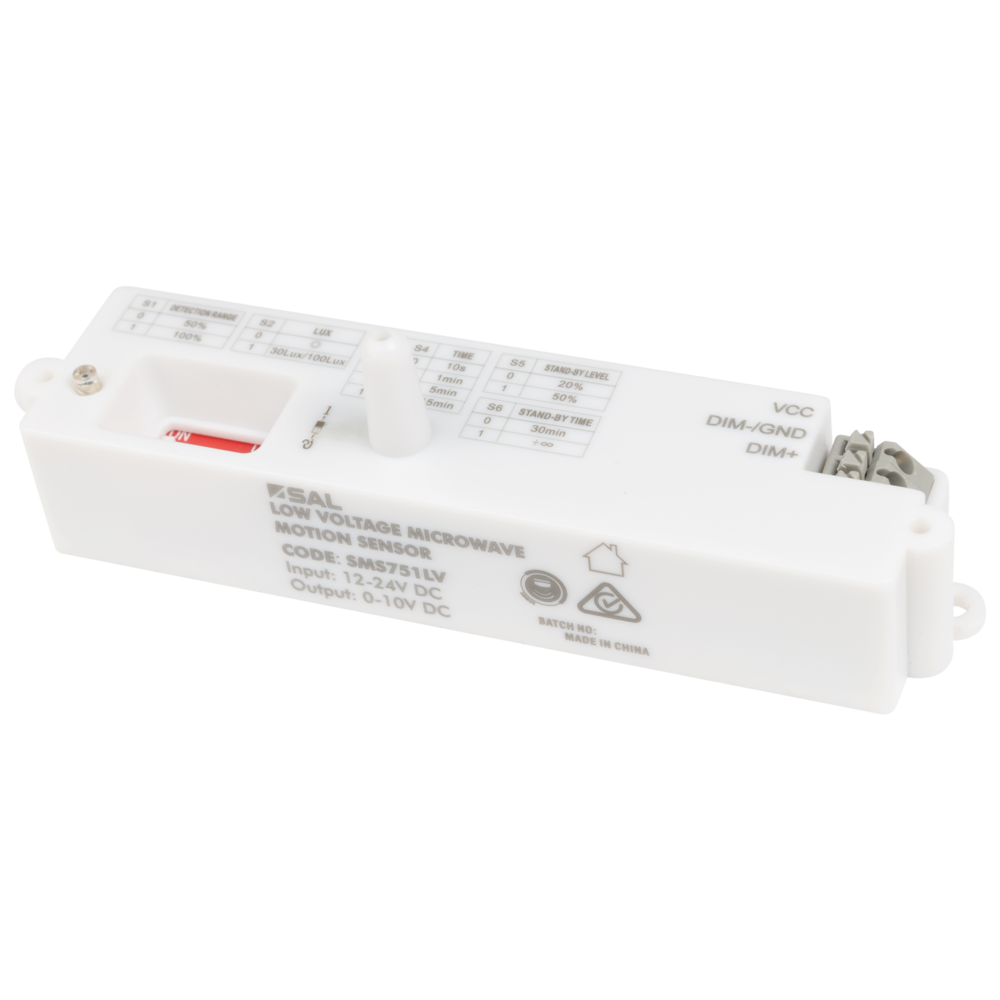

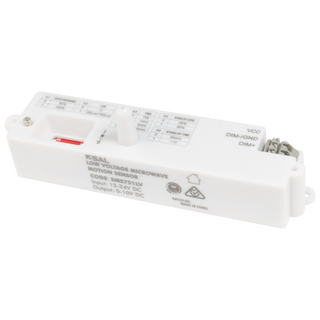

Microwave ELV motion corridorSTANDBY sensor IP20
Application
Versatile microwave ON/OFF sensor. SAL factory fitted sensor option for approved products only, not for individual sale
Design Specifications
-
Power source input: 12-24V DC, output 0-10V DC, 30mA sinking current
-
Detection radius max 8m, angle 360°, max 2.5hm
-
Power consumption <0.5W
-
HF system: 5.8GHz
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - MICROWAVE
