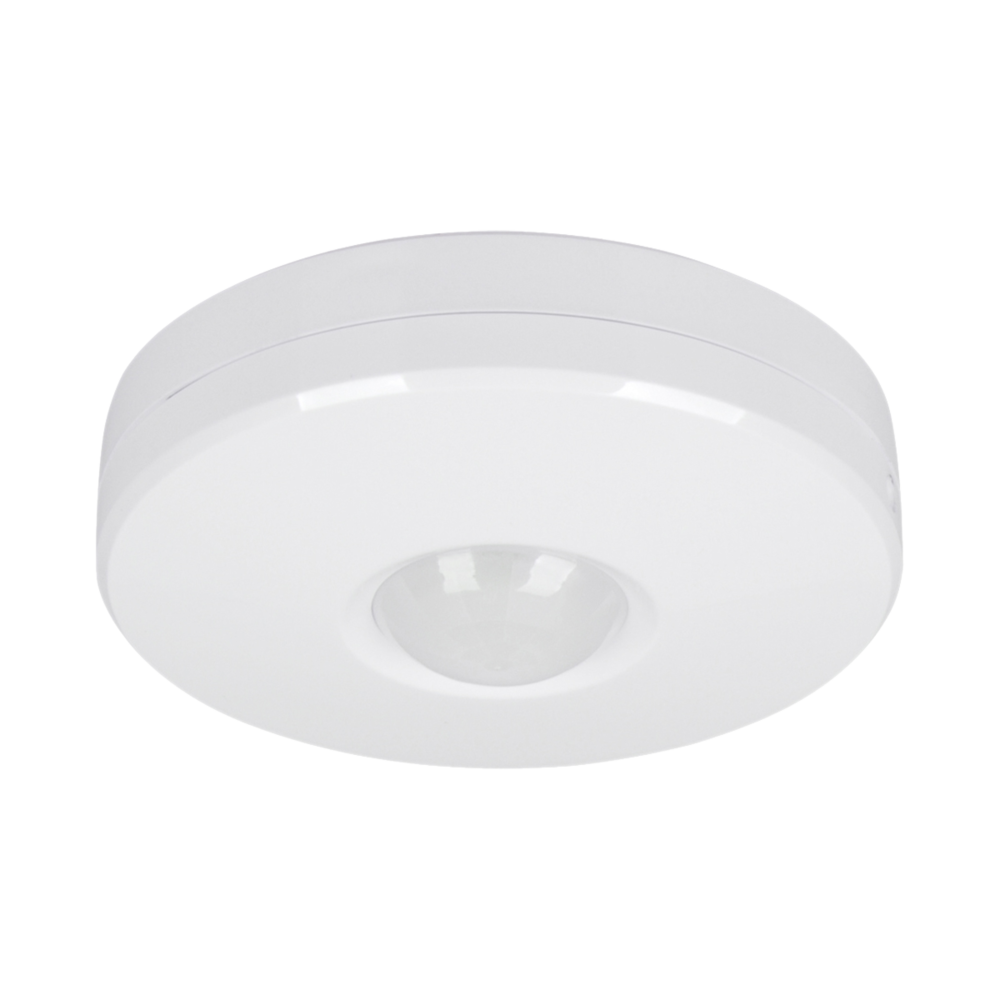

SAL IR SENSOR SMS805CS

Application

IP20 surface mount sensor designed for residential and commercial spaces

Design Specifications

• Switched power 1600W incandescent, 500W, fluorescent, 200W LED, colour white

• Standby power <1W

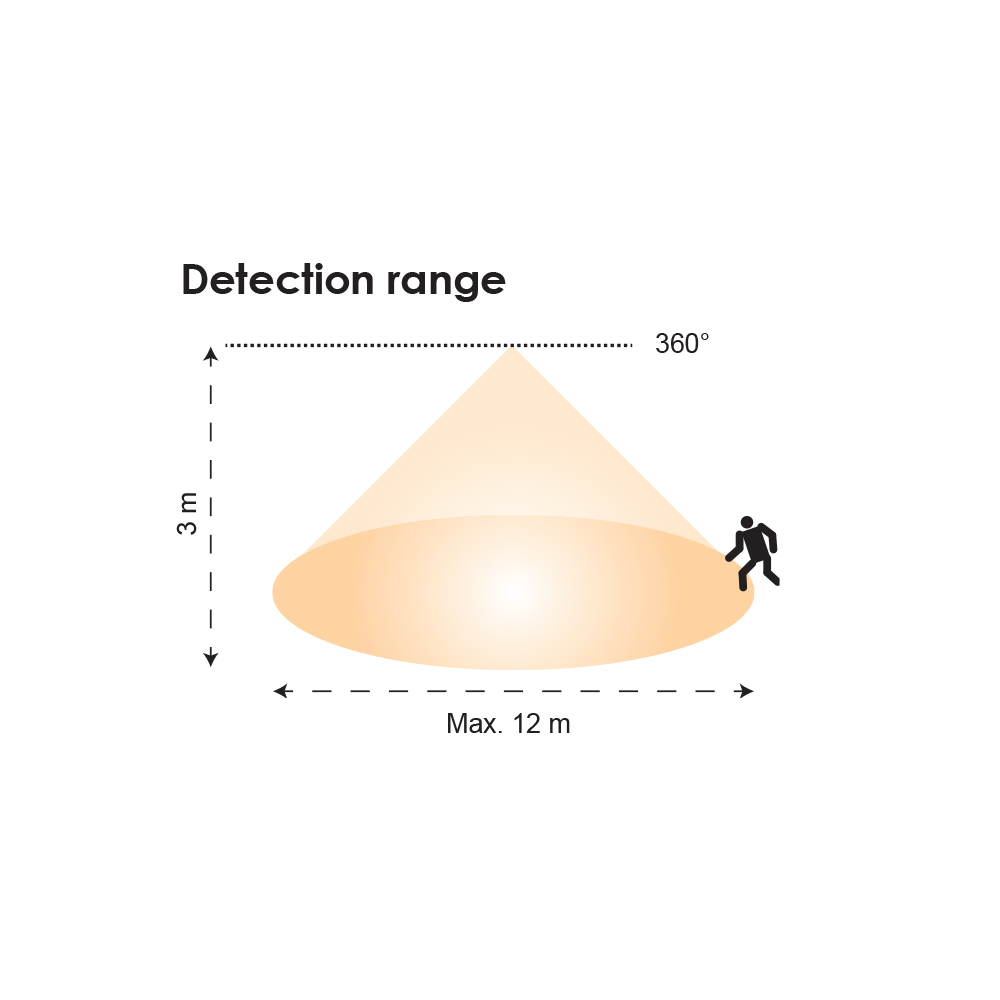

• Detection distance Max. 12 m in diameter
• Detection angle 360° , Duration Time / 10sec / 4min adjustable

• Dawn to dusk adjustable, mounting height max. 3m

• Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode
