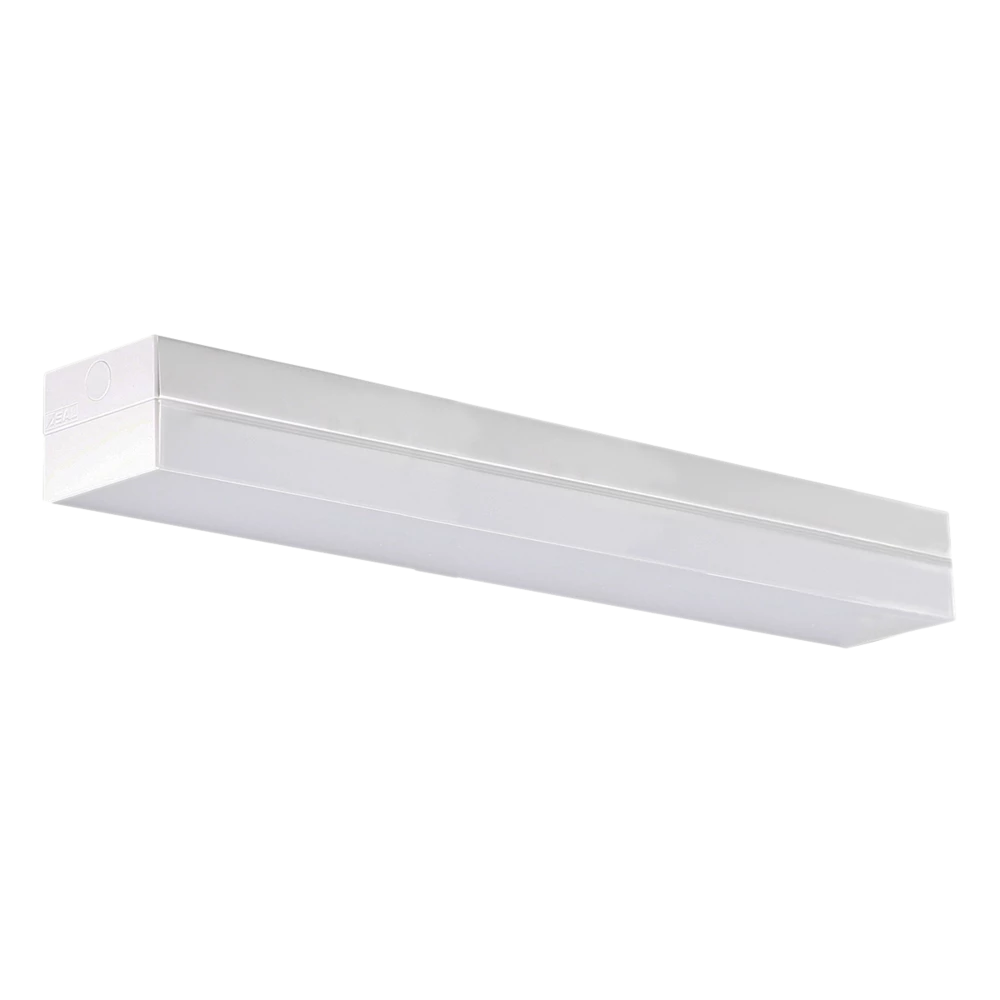

SAL Ledline SLD2000TC/MP 20W LED Diffused Batten

Application

Conventional LED linear surface mount batten for commercial service spaces

Design Specifications

• Robust, pressed steel body profile

• White powder coat finish with an opal PMMA diffuser

• High efficiency LED optics, CRI > 80

• Integral flickerCONTROLLED non-dimmable LED driver 20 watt as standard, optional dimming, emergency and sensor functions available.

• Default (maximum) current selection is 500mA, refer installation sheet for optional range selections

• Unique diffuser design allows end to end installation and large terminal block for easy installation

• CCT 3000/4000/5700, Lumens 2250/2400/2300
• Dimensions 600(L) x 100(W) x 77(H)
• Beam Angle 110

Performance

• Dimmable - OPTIONAL
