Description

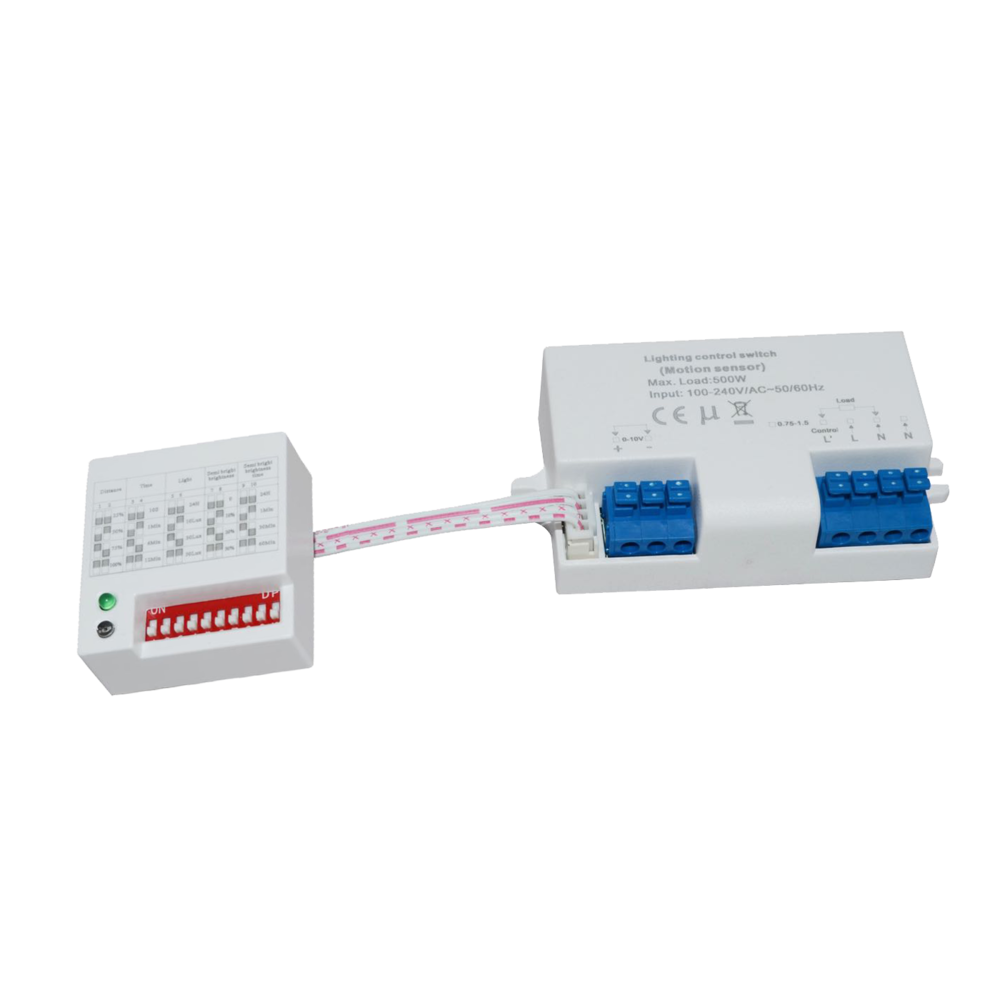

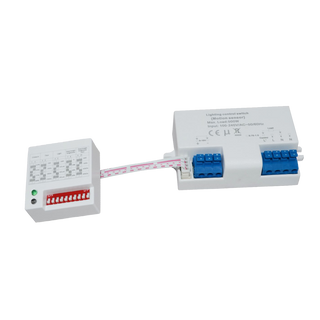

Microwave motion sensor IP20 with detachable antenna step dimming
Application
Creative motion sensor for interior lighting applications SAL factory fitted sensor option for approved products only, not for individual sale
Design Specifications
-
Operating voltage: 100~240Vac, out current: ~10Vdc, switched power: Max.600W, standby power: <0.9W
-
Detection range: 25%/50%/75%/100%
-
Daylight threshold: 10~50lux, or disable
-
Hold time: 10s/10min/20min/30min, standby period: 1min/30min/60min/24h, standby dimming level: 10%/20%/30%
-
Microwave frequency: 5.8GHz ± 75MHz, microwave power: <0.2mW
-

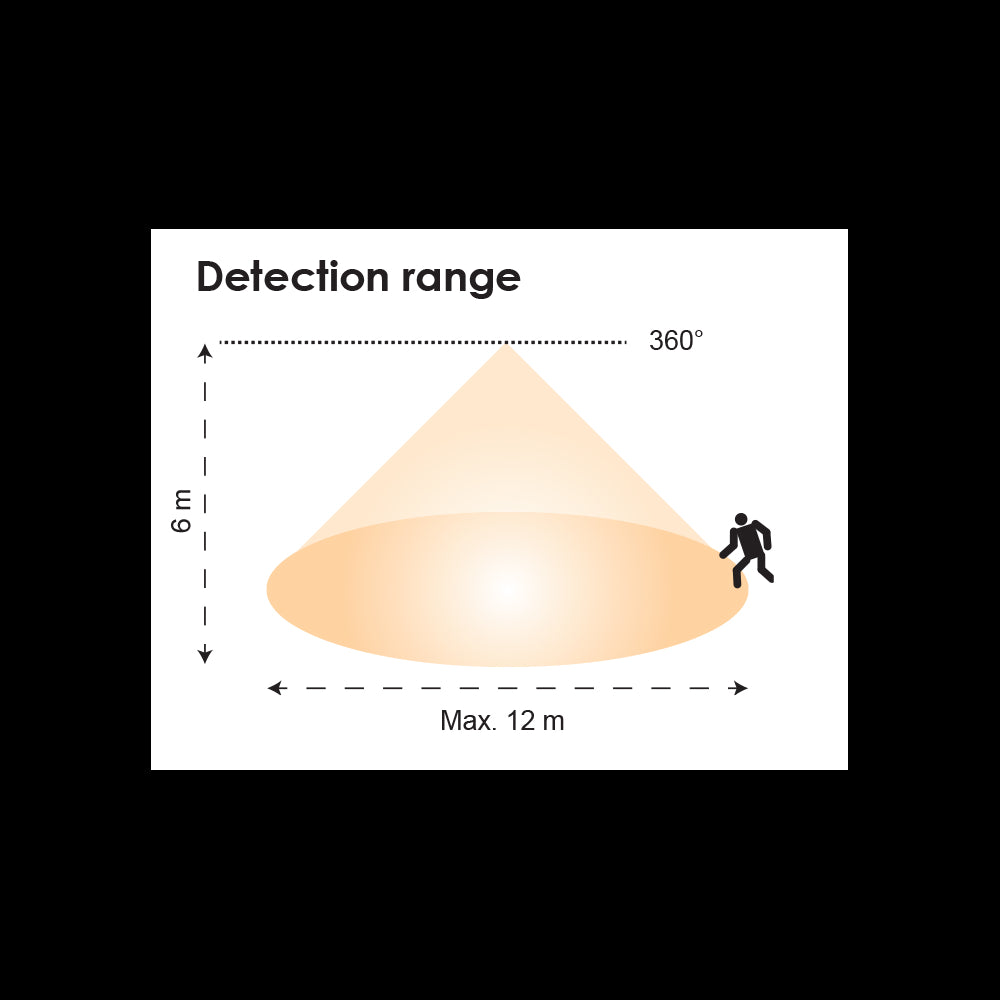

Detection range: Max.12m, detection angle: 360°, mounting height: Max.6m.
Performance
- Dimmable - YES
- Dimmer Type - Step Dimming
- In Built Sensor - YES
- Sensor Type - MICROWAVE
