Description

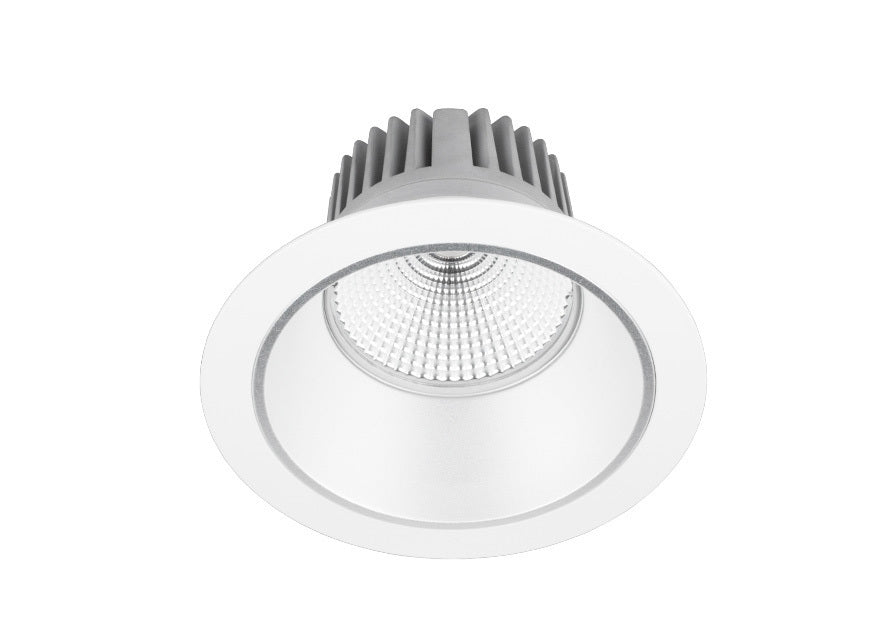

- Recessed LED downlight with dual reflector design for visual comfort
- Manufactured with an aluminum body and finish
- A variety of sizes, power and trim options available (XLC10, XLC35, XLCL25 and XLCL35)
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
Trim Colour：White
Dimensions：⌀190 X 130 (H) mm
Weight：985 g
Cutout：Circle - 165 - 180 mm
Spring Height：25 mm
General Characteristics
Family：Maxiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20
Technical Characteristics*
LED Power：25W
LED Type：COB
LED Lumen Output*：3375 lm
Luminous Flux*：2481 lm
Efficacy*：93.98 lm/W
Colour Temperature：3000K|4000K
Colour Technology：CRI 90+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Angle：Medium
System Power：26.4W Typical
Driver Model：Trend 150020-700 (L&T)
Input：180-265V AC 50/60 Hz
Output：30-40V DC 700mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
