Description

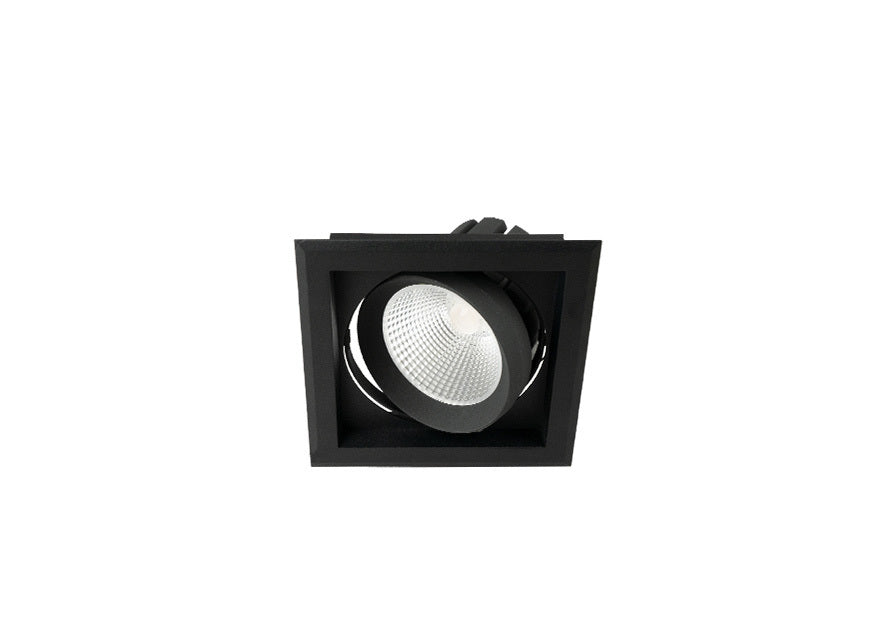

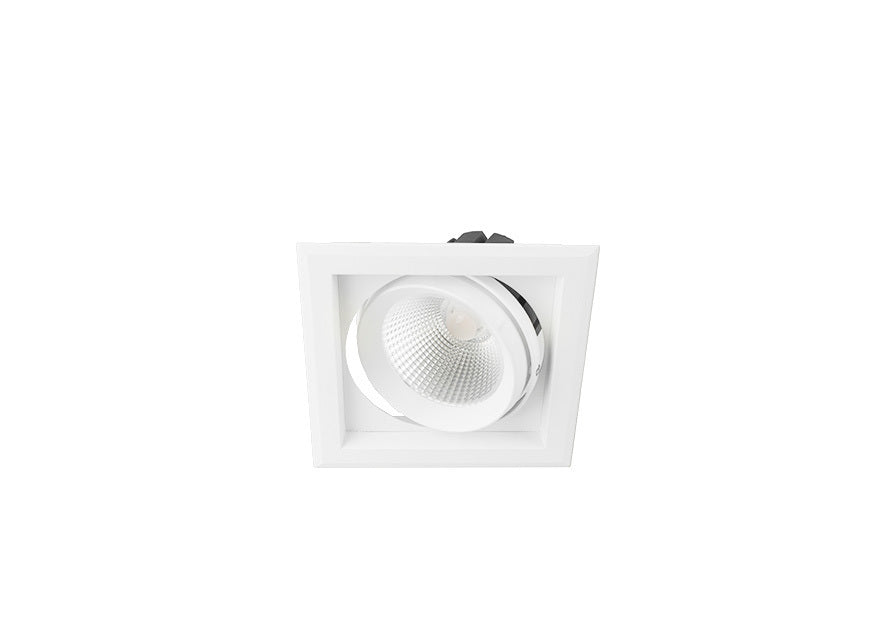

- Single recessed adjustable LED downlight in square housing
- Also available in a twin configuration (XMC225) or as a row of three (XMC325)
- CRI 90+ available in 3000K and 4000K CCT options
- Anodised black heatsink for effective thermal management ensuring high output and long lifespan
- Supplied with a remote driver
Physical Characteristics
Trim Colour：White|Black
Dimensions：175 (L) X 175 (W) X 110 (H) mm
Weight：1350 g
Tilt Angle：35º x 35°
Cutout：Square - 160 mm
Spring Height：35 mm
General Characteristics
Family：Midiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20
Technical Characteristics*
LED Power：25W
LED Type：COB
LED Lumen Output*：2955 lm
Luminous Flux*：2500 lm
Efficacy*：94.70 lm/W
Colour Temperature：3000K|4000K
Colour Technology：CRI 90+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Angle：Medium
System Power：26.4W Typical
Driver Model：Trend 150020-700 (Non-dim)
Input：180-265V AC 50/60 Hz
Output：30-40V DC 700mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Non-dimmable|Leading & Trailing Edge|DALI
