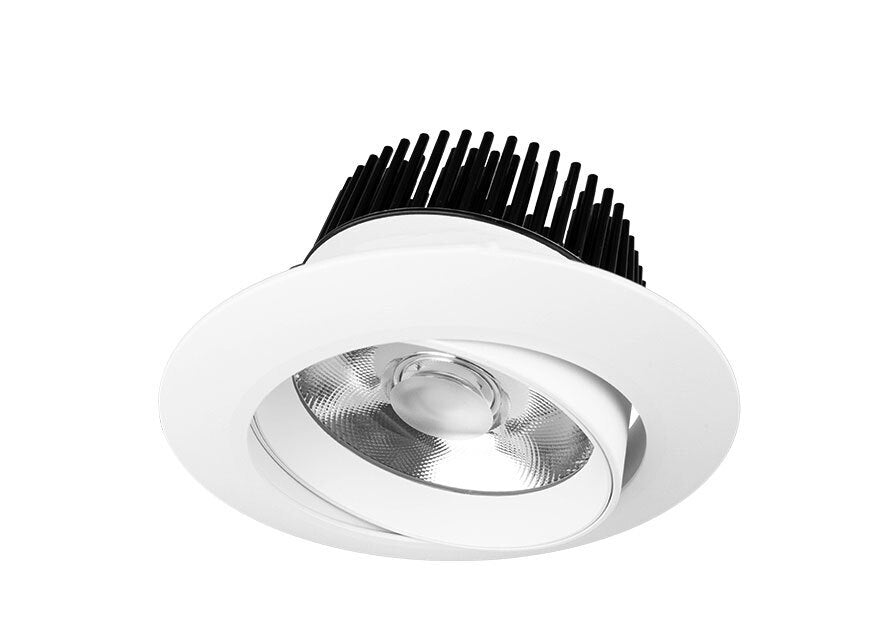

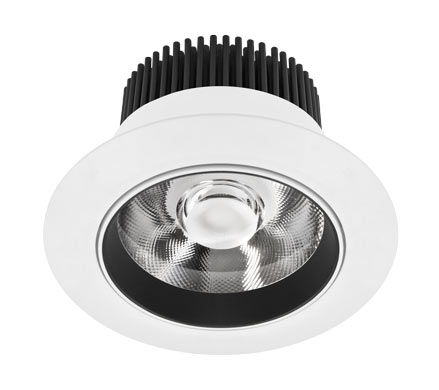

Trend MINILED XDMS25 25W LED Downlight

• Recessed adjustable LED downlight with front collimator lens and lower profile, characterised by its quality, light efficiency and performance
• Manufactured with an aluminium body and powder coat finish
• Large pin fin heatsink for optimal thermal management
• CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

Trim Colour：White

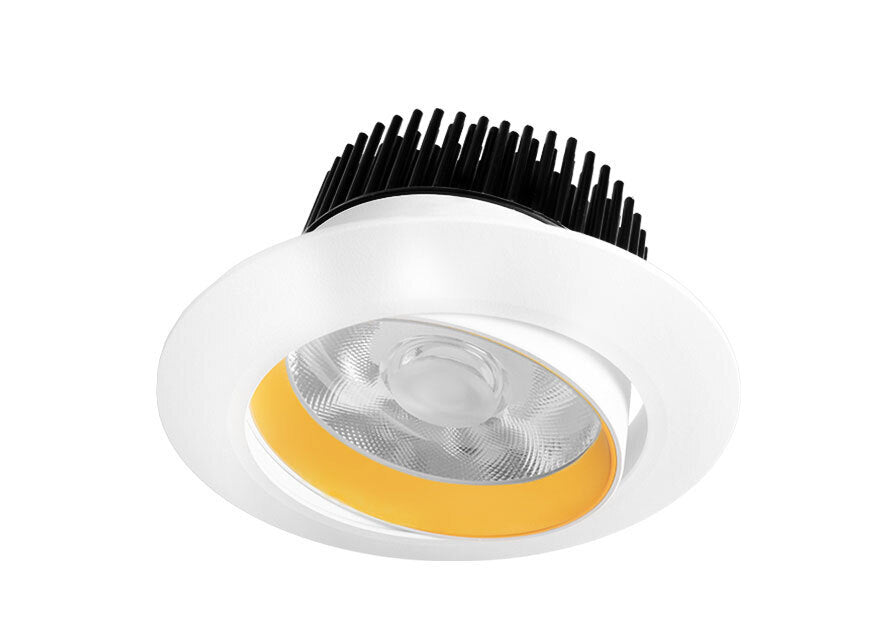

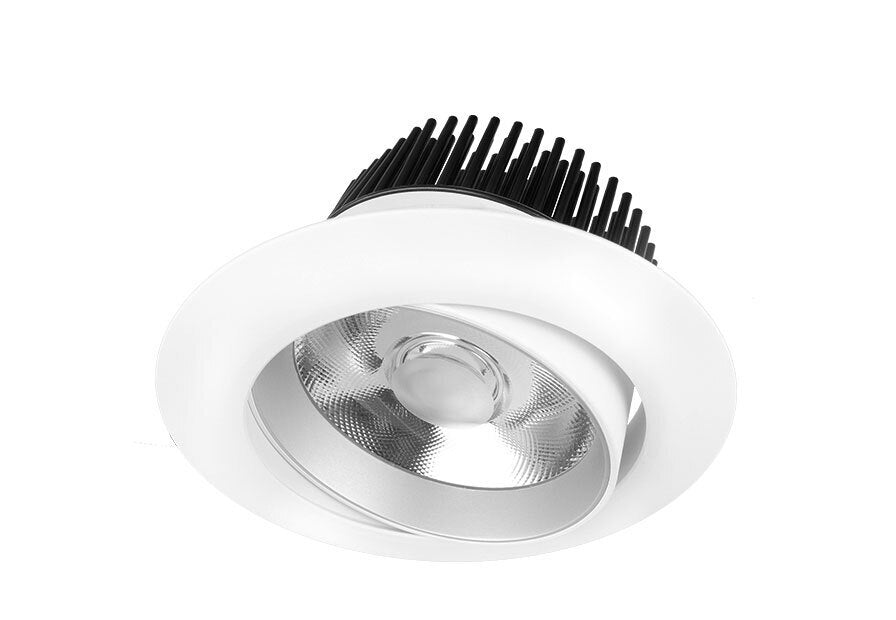

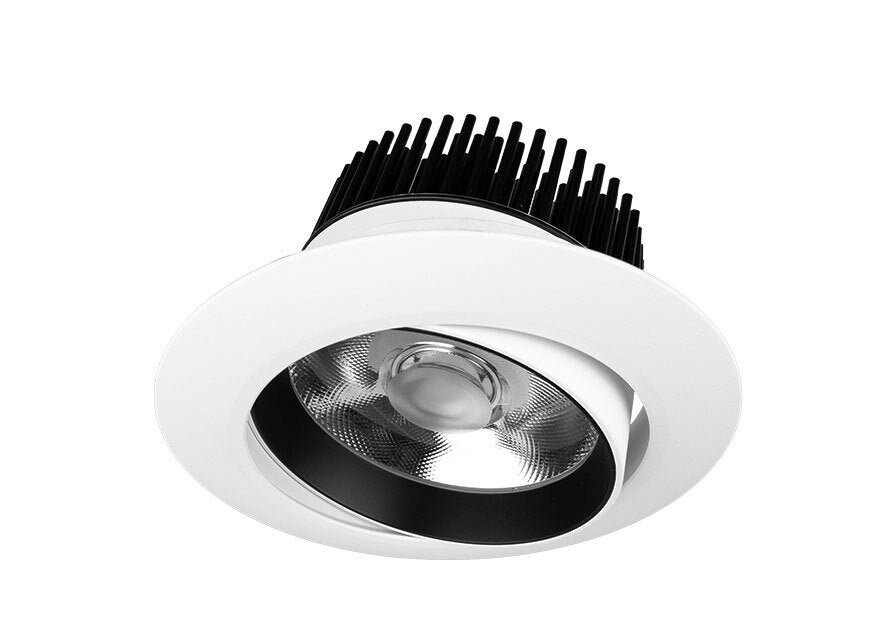

Insert Colour：White|Black|Silver|Gold
Dimensions：⌀150 X 85 (H) mm
Weight：505 g
Tilt Angle：25°
Cutout：Circle - 120 mm
Spring Height：35 mm

General Characteristics

Family：Midiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20

Technical Characteristics*

LED Power：25W
LED Type：COB
LED Lumen Output*：2955 lm
Luminous Flux*：2228 lm
Efficacy*：84.39 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Wide|Medium
System Power：26.4W Typical
Driver Model：Trend 150020-700 (L&T)
Input：180-265V AC 50/60 Hz
Output：30-40V DC 700mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
