Trend MINILED XMB225 2x25W LED Downlight

• Twin recessed adjustable LED downlight in rectangular housing
• Also available in a single spot (XMB125) or as a row of three (XMB325)
• Anodised black heatsink for optimum thermal management, ensuring high output and long lifespan
• CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

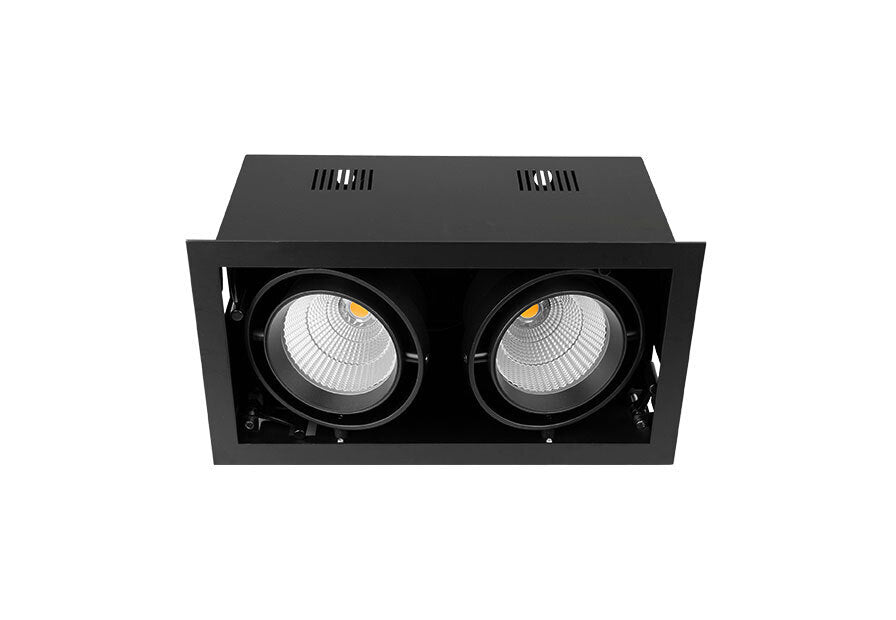

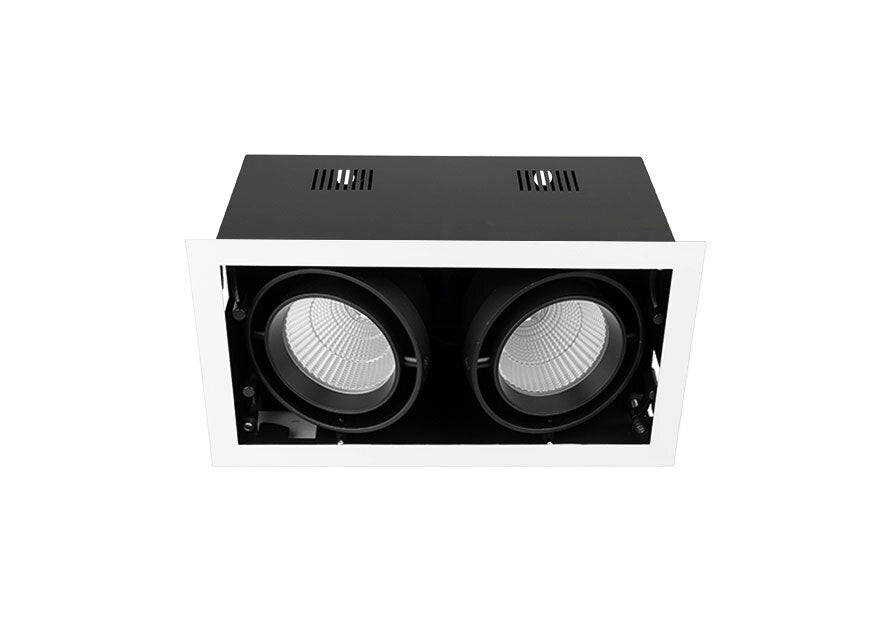

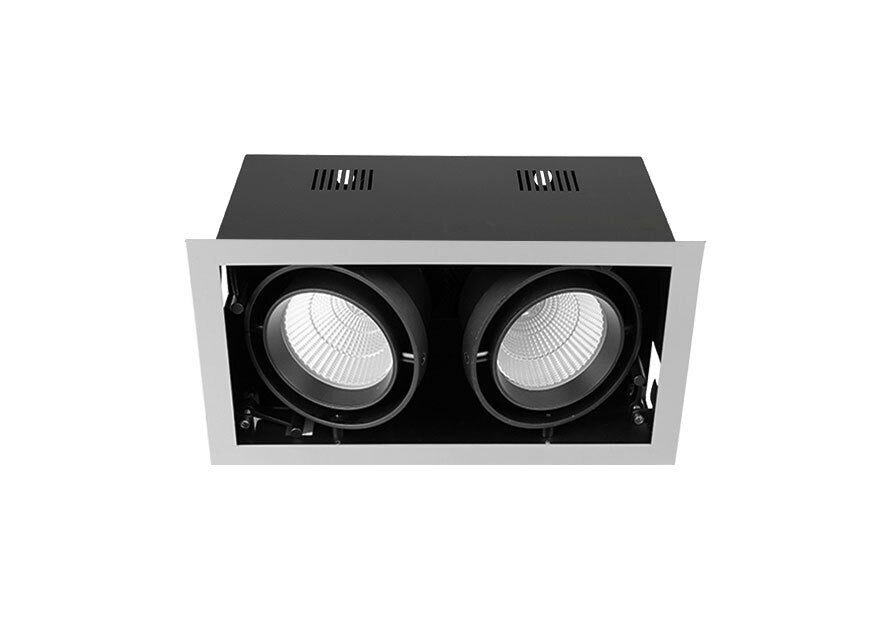

Trim Colour：White|Black|Silver
Dimensions：345 (L) X 190 (W) X 185 (H) mm
Weight：3795 g
Tilt Angle：35º x 35°
Cutout：Rectangle - 320 x 165 mm
Spring Height：22 mm

General Characteristics

Family：Midiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：Non-IC
Ingress Protection：IP20

Technical Characteristics*

LED Power：2 x 25W
LED Type：COB
LED Lumen Output*：5910 lm
Luminous Flux*：4882 lm
Efficacy*：92.46 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Wide|Narrow|Medium
System Power：52.8W Typical
Driver Model：Trend 150020-700 (Non-dim) x2
Input：180-265V AC 50/60 Hz
Output：30-40V DC 700mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Non-dimmable|DALI|Leading & Trailing Edge
