Description

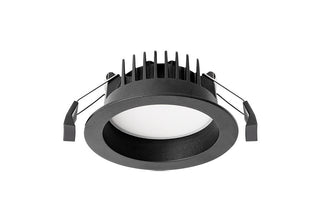

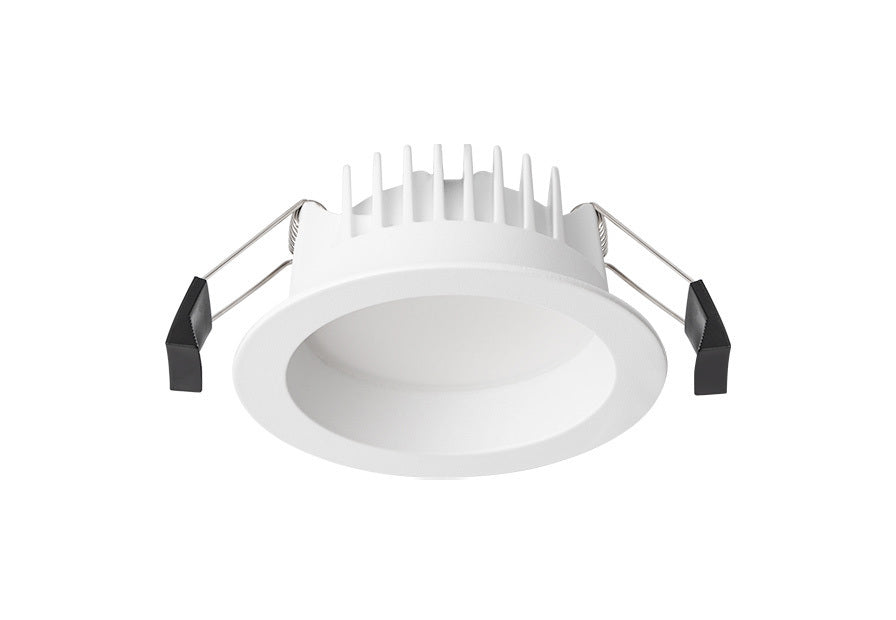

- Recessed SMD LED fixed downlight with a slim design and stepped opal polycarbonate diffuser for uniform lighting distribution
- Aluminium profile provides excellent thermal management for exceptional heat dissipation
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Egde dimmable driver
Physical Characteristics
Trim Colour：White|Black
Dimensions：⌀110 X 52 (H) mm
Weight：260 g
Cutout：Circle - 90 - 95 mm
Spring Height：30 mm
General Characteristics
Family：Trend For Trade, Multiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：IC-4
Ingress Protection：IP54
Warranty：3 Years
Technical Characteristics
LED Power：10W
LED Type：SMD
LED Lumen Output*：990 lm
Efficacy*：Up to 104 lm/W
CCT Technology：Tri-colour Selectable
Colour Temperature：3000K, 4000K, 5700K
Colour Technology：CRI 85+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L70)
Beam Angle：Wide
System Power：9.5W Typical
Driver Model：Trend DR-DTL10 (L&T)
Input：200-240V AC 50Hz
Power Factor：>0.95
Protection：OTP,SCP
Driver：Leading & Trailing Edge
