Description
- Large recessed SMD LED fixed downlight with a slim design and opal polycarbonate diffuser for uniform lighting distribution
- Aluminium profile provides excellent thermal management for exceptional heat dissipation
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Edge dimmable driver
Physical Characteristics

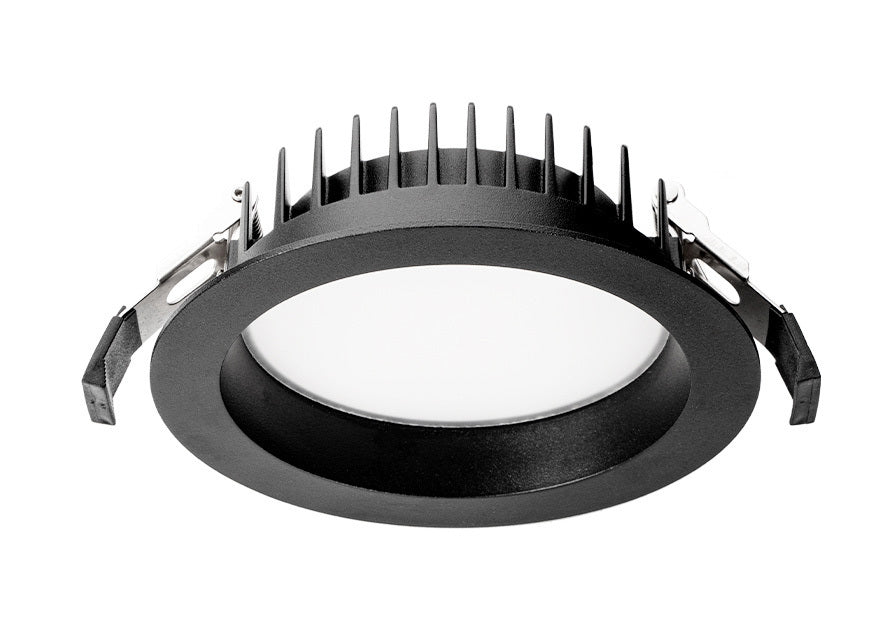

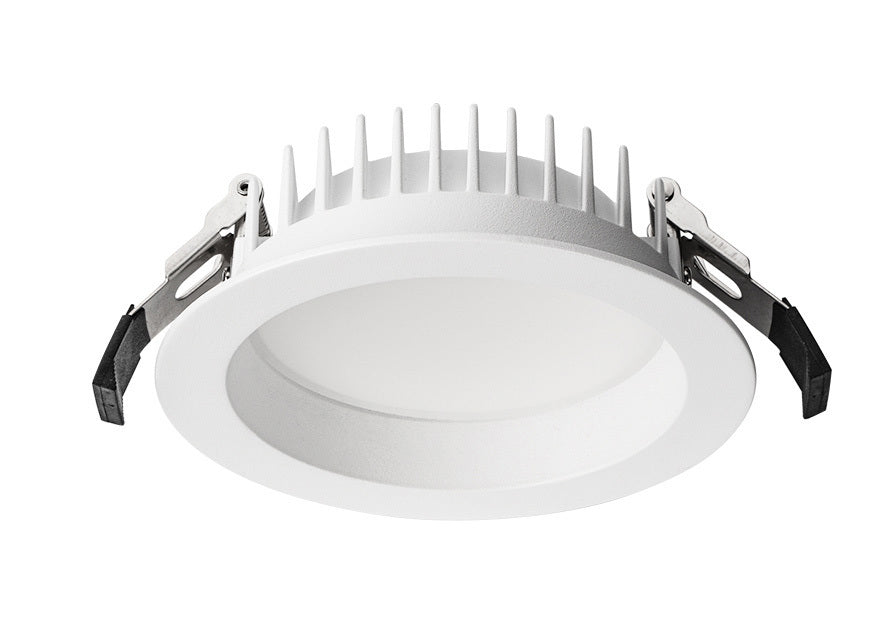

Trim Colour:：White|Black
Dimensions： ⌀190 X 53 (H) mm
Weight:：580 g
Cutout:：Circle - 160 - 170 mm
Spring Height:：35 mm
General Characteristics
Family：Trend For Trade, Multiled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：IC-4
Ingress Protection：IP54
Warranty：3 Years
Technical Characteristics
LED Power：18W
LED Type：SMD
LED Lumen Output*：2,145 lm
Efficacy*：Up to 121 lm/W
CCT Technology：Tri-colour Selectable
Colour Temperature：3000K, 4000K, 5700K
Colour Technology：CRI 85+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L70)
Beam Angle：Wide
System Power：17.6W Typical
Driver Model：Trend DR-DTL18 (L&T)
Input：200-240V AC 50 Hz
Power Factor：>0.95
Driver：Leading & Trailing Edge
