Description
- Recessed premium adjustable LED downlight characterised by its versatility and superior colour rendering
- Manufactured with an aluminium body and powder coat finish
- Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
- Can be specified with specular dark reflector
- CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics

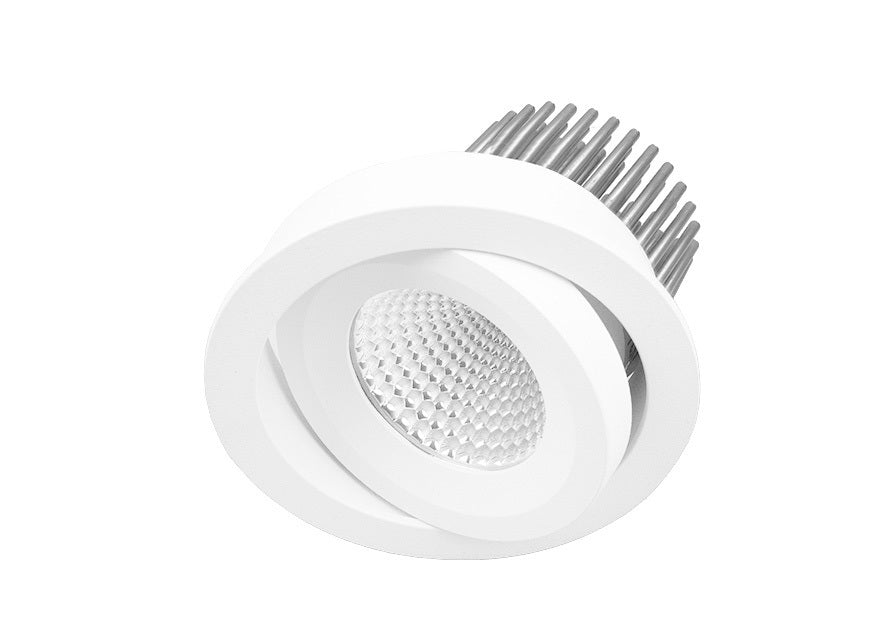

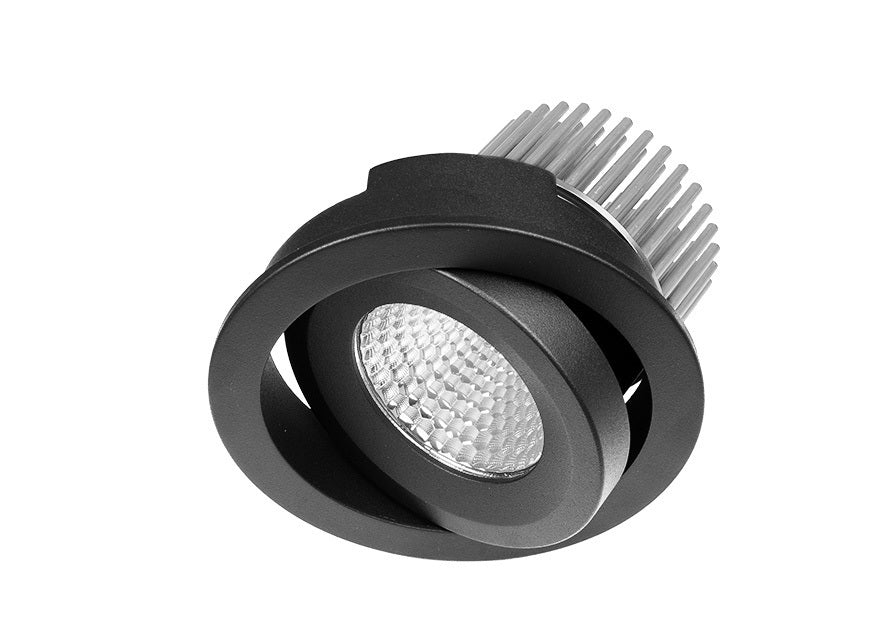

Trim Colour：White|Black

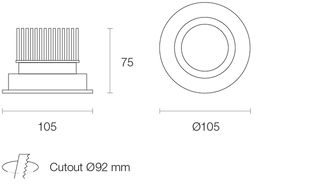

Dimensions：⌀105 X 75 (H) mm
Weight：315 g
Tilt Angle：30°
Cutout：Circle - 92 mm
Spring Height：20 mm
General Characteristics
Family：Platinum
Surface：Ceiling
Mounting：Recessed
Insulation Contact：CA90
Ingress Protection：IP20
Technical Characteristics*
LED Power：10W
LED Type：COB
LED Lumen Output*：1350 lm
Luminous Flux*：1213 lm
Efficacy*：101.93 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 94+ Standard|CRI 98+ Optisolis
Colour Deviation：SDCM ≤ 2
Lifetime：>60,000 hours (L80 B10)
Beam Angle：Wide|Narrow|Medium
System Power：11.9W Typical
Driver Model：Trend 150218-300 (L&T) Black
Input：180-265V AC 50/60 Hz
Output：30-42V DC 300mA
Power Factor：>0.93
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
Accessories：Specular Dark Reflector
