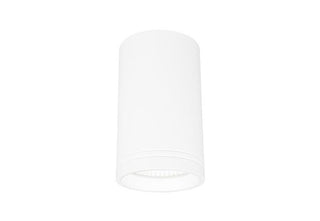

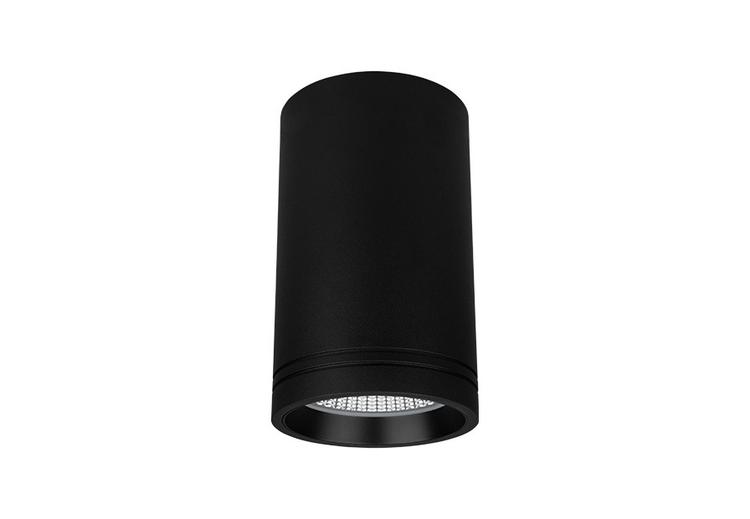

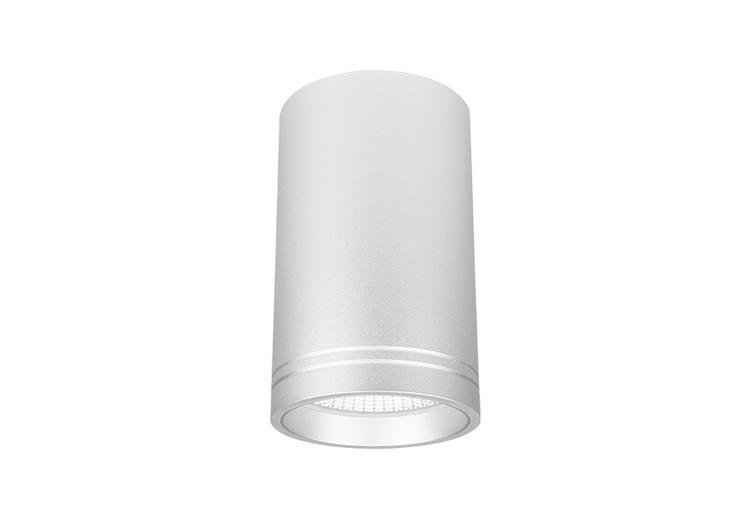

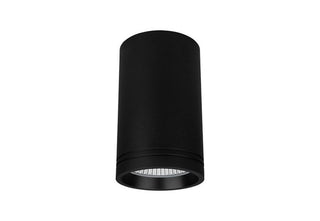

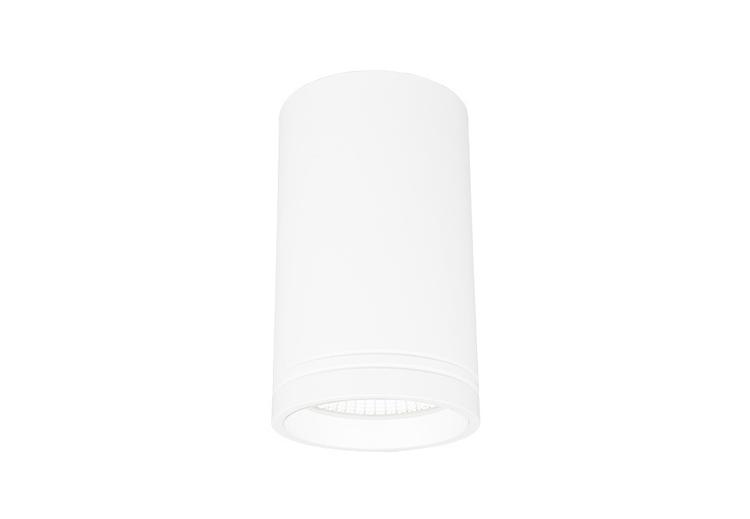

Trend Surface Mounted LED Downlight XSR25 25W

• Surface mounted LED downlight, manufactured with an aluminium body in powder coat finish and sealed face with silicone gasket
• Designed with no visible mounting screws providing a cleaner look with a large integral pin fin heatsink for excellent thermal management
• CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
• Supplied with an integral driver

Physical Characteristics

Trim Colour：Black|White|Silver
Insert Colour：Black|White|Silver|Gold

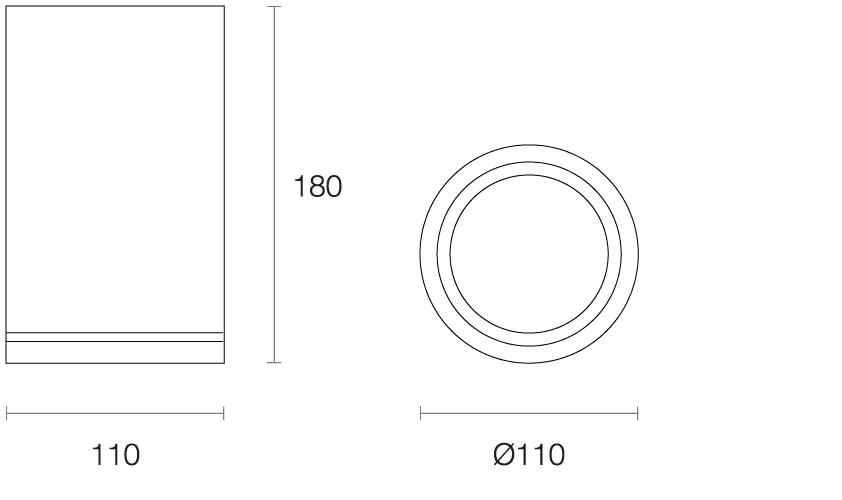

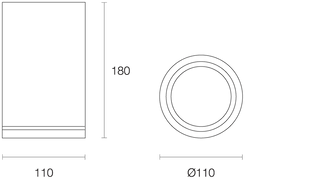

Dimensions：⌀110 X 180 (H) mm
Weight：1310 g

General Characteristics

Family：Surface
Surface：Ceiling
Mounting：Surface Mounted
Ingress Protection：IP20

Technical Characteristics*

LED Power：25W
LED Type：COB
LED Lumen Output*：2955 lm
Luminous Flux*：2230 lm
Efficacy*：83.21 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Wide|Narrow|Medium
System Power：26.8W Typical
Driver Model：Trend 150080-600 (T/E)
Input：220-240V AC 50/60 Hz
Output：25-42V DC 600mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Trailing Edge|DALI
