Atom Thredbo 2 Light 3in1 Bathroom Heater & Exhaust with LED R63 Lamp

by Atom Lighting
SKU: THREDBO/2LT/WH
$130.00

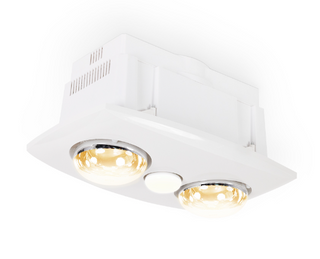

Atom Thredbo 2 Light 3in1 Bathroom Heater & Exhaust with LED R63 Lamp
Atom Thredbo 2 Light 3in1 Bathroom Heater & Exhaust with LED R63 Lamp
Atom Thredbo 2 Light 3in1 Bathroom Heater & Exhaust with LED R63 Lamp

Atom Thredbo 2 Light 3in1 Bathroom Heater & Exhaust with LED R63 Lamp

by Atom Lighting
SKU: THREDBO/2LT/WH
$130.00
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
A 3-in-1 bathroom heater, exhaust fan and LED light, the Thredbo is a convenient solution for smaller bathrooms and ensuites, providing instant heat, high velocity airflow, and bright, efficient lighting.
  • Energy-efficient 30W ball bearing motor for superior reliability
  • Built in 80°C thermal cutout switch for added safety
  • Outlet grill with integrated draught stopper for maximum efficiency
  • Replaceable R63 (E27) LED lamps
  • 3-year in-home warranty for peace of mind
  • Includes integrated draught stopper, wall switches, 1.5m duct and grill outlet
  • Ideal for smaller bathrooms and ensuites

Mechanical

Product Finish Gloss
Fitting Colour White
IC Rating Do not cover
Installation Type Recessed
IP Rating IPx2

Electrical

Electrical Rating Class I
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range -10 to 40 °C

Lamp

CCT Configuration Single
CRI >80

Colour temperature

CCT 4000 K
CCT Colour Cool White
Luminaire Lumens 850 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Exhaust

Outlet 125 mm
Noise level 45 dB
Motor Wattage 45 W
Motor Type Ball bearing
Fan Type Centrifugal
Air extraction 280 m3/hr

Heat

Heater Type 2x 275W IR Heat Lamp (E27)

Compliance

Product Design Life 10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use 2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60335.2.30
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS CISPR 14.1
  • AS CISPR 15

Warranty

Domestic Use Warranty 3 Onsite (Total 3 Years)
Warranty Operating Hours 2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

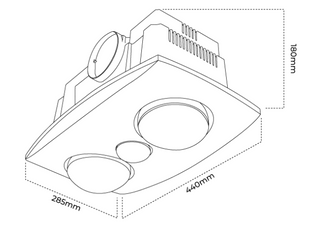

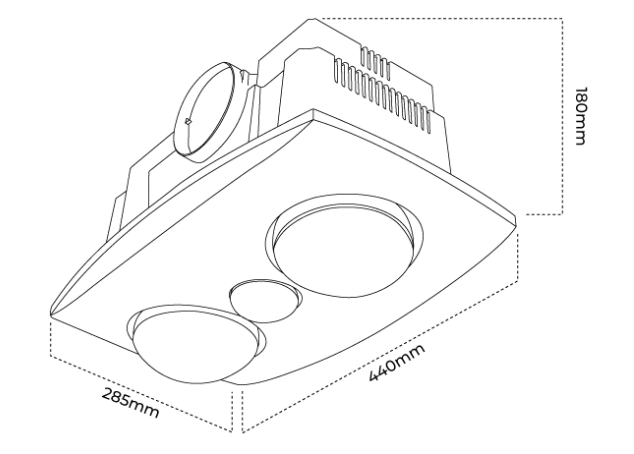

Item Code Minimum Ceiling Depth Cutout Product Height Product Length Product Width
THREDBO/2LT/WH 220 mm 345x202 mm 180 mm 440 mm 285 mm
