SAL Suspension Drops

Application

Panel, weatherproof and linear extrusion accessories for retail, residential and commercial applications

Design Specifications

• M10 size ceiling attachment

• 1.2 mm stainless steel wire, maximum load per drop is 15kg

• M10 size griplock system

• NOTE:  SSI1512 and SSY1512 codes represent one (1) wire drop only.
  Four (4) x SSI1512 drops are required for each panel
  Two (2) x SSY1512 drops are required for each panel

• NOTE: S97X4SP4 (1) one pack of (4) four brackets is required

• NOTE: suspension brackets and suspension drops MUST be ordered separately

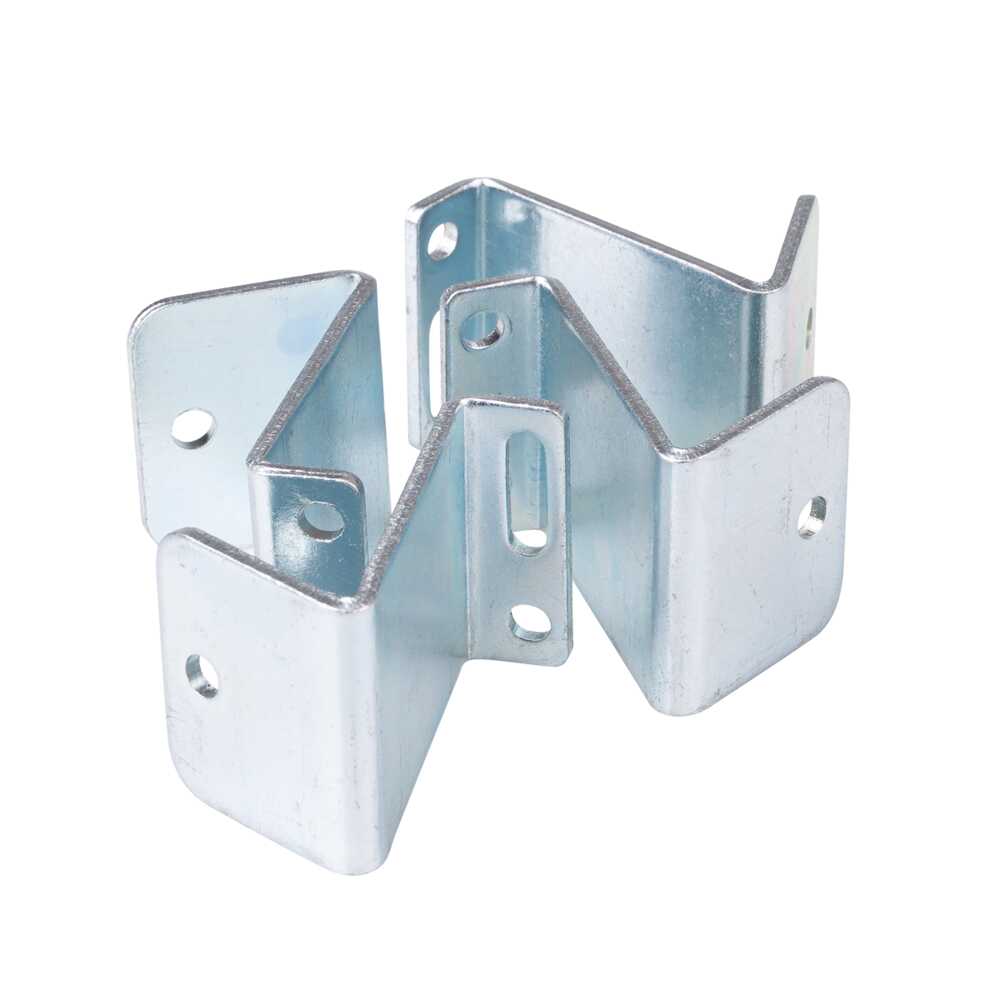

S97X4SP4: SUSPENSION BRACKET PACK OF 4

SSI1512: "I" SUSPENSION DROP STAINLESS STEEL 1800(L)

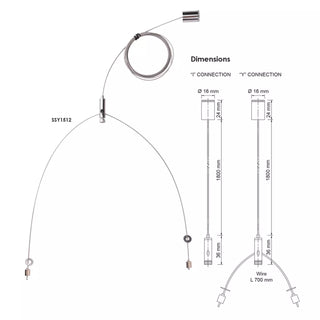

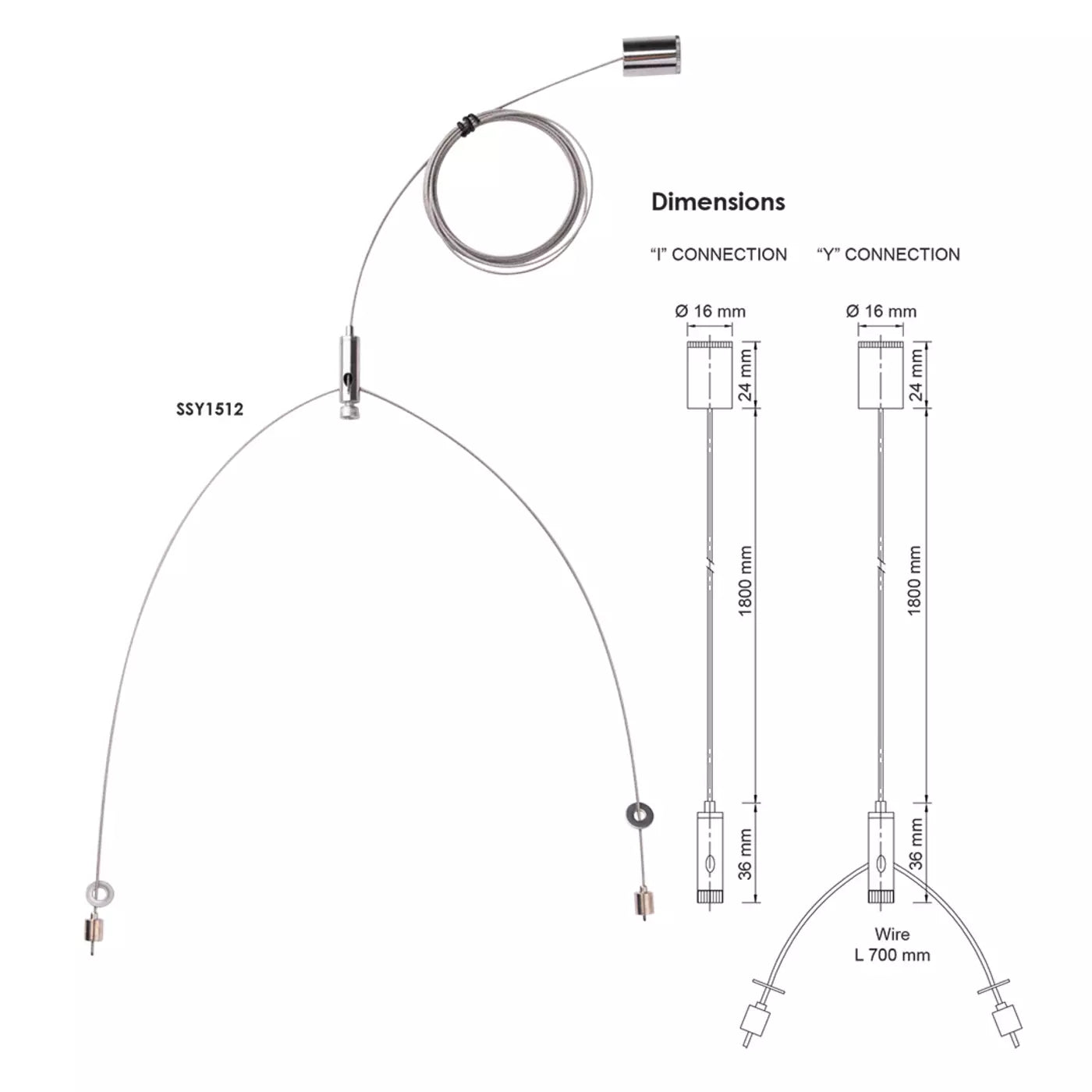

SSY1512: "Y" SUSPENSION DROP STAINLESS STEEL 1800(L)

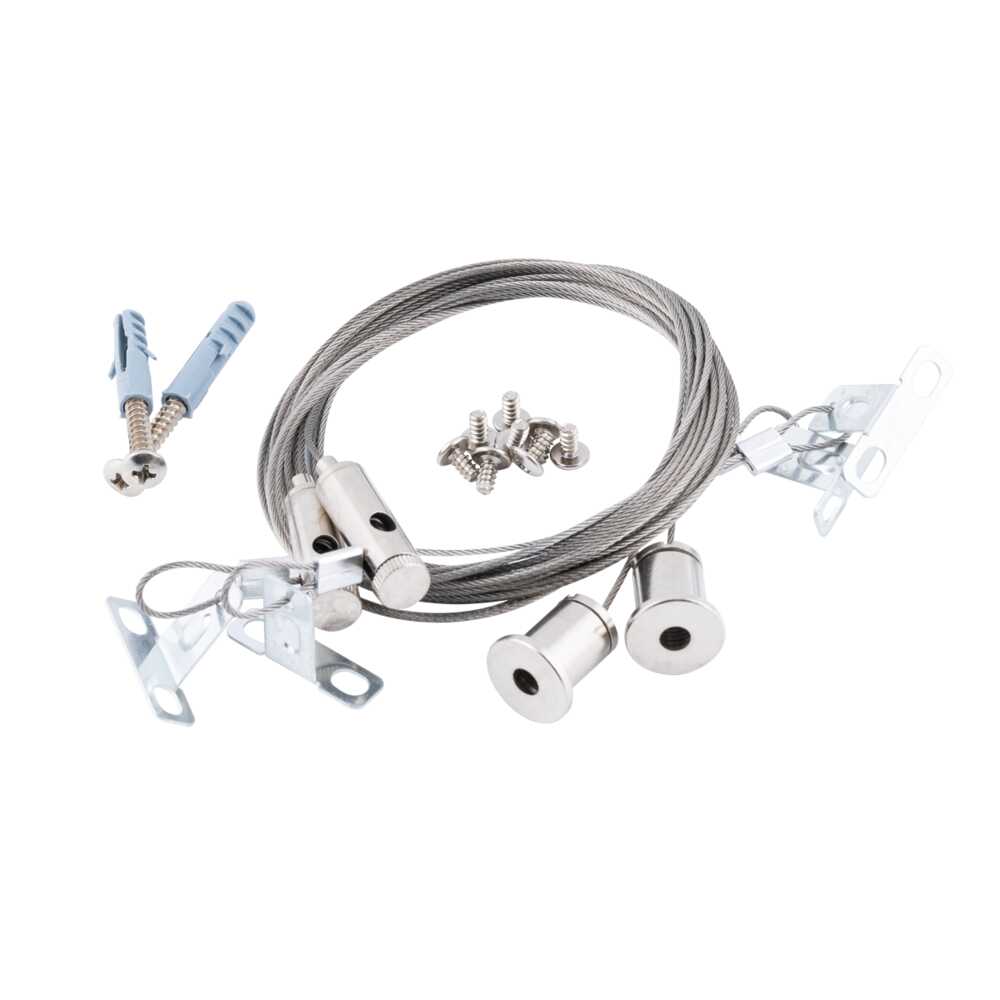

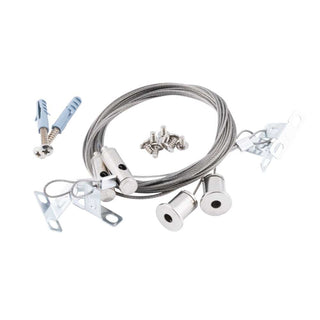

S97X4KIT: Y’’ SUSPENSION DROP INCLUDES 4 X BRACKETS AND 2 X Y-DROPS 1800(L)
