Description
- Recessed IP67 rated square LED step light with asymmetric beam distribution
- Designed to provide an aesthetic lighting solution for way-finding and architectural applications
- Optional recessed mounting canister included
- CRI 80+ available in 3000K CCT option
- Compatible driver models available upon request
- Requires 12V DC 250mA constant voltage driver
Physical Characteristics

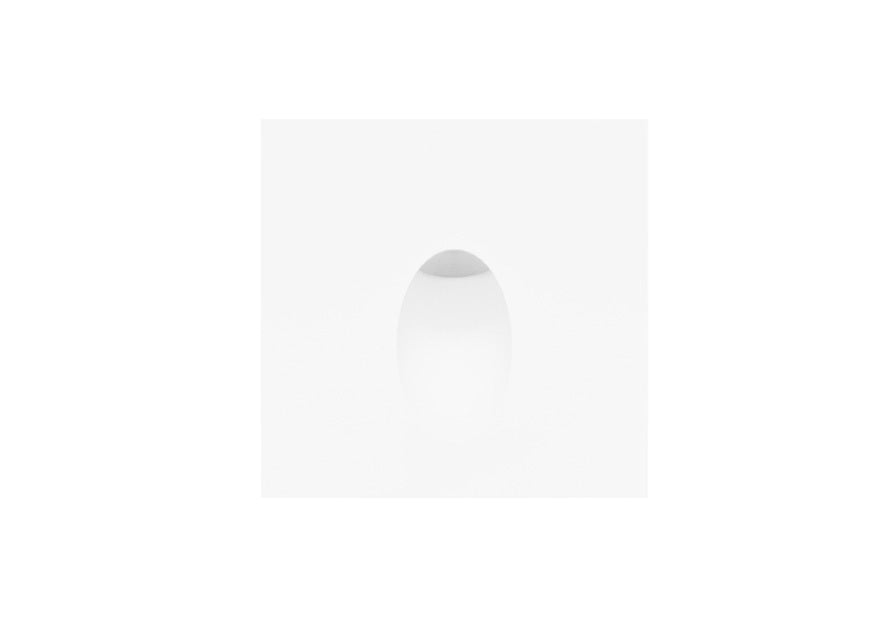

Trim Colour：White
Dimensions：80 (L) X 80 (W) X 36 (H) mm
Weight：229 g
Cutout：Circle - 60 mm
General Characteristics
Family：Step
Surface：Wall
Mounting：Recessed
Ingress Protection：IP67
Technical Characteristics*
LED Power：3W
LED Type：COB
LED Lumen Output*：140 lm
Luminous Flux*：82 lm
Efficacy*：27.33 lm/W
Colour Temperature：3000K
Colour Technology：CRI 80+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Angle：Asymmetric
System Power：3W Typical
LED Type：COB
LED Lumen Output*：140 lm
Luminous Flux*：82 lm
Efficacy*：27.33 lm/W
Colour Temperature：3000K
Colour Technology：CRI 80+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Angle：Asymmetric
System Power：3W Typical
